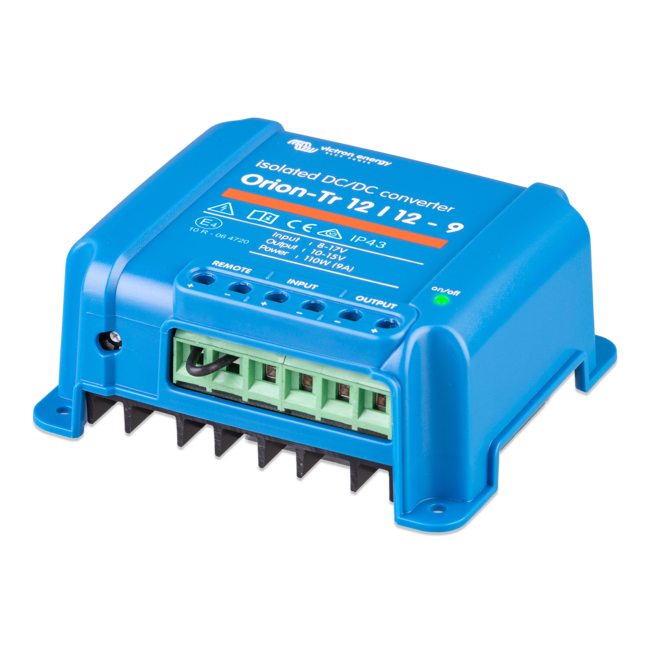

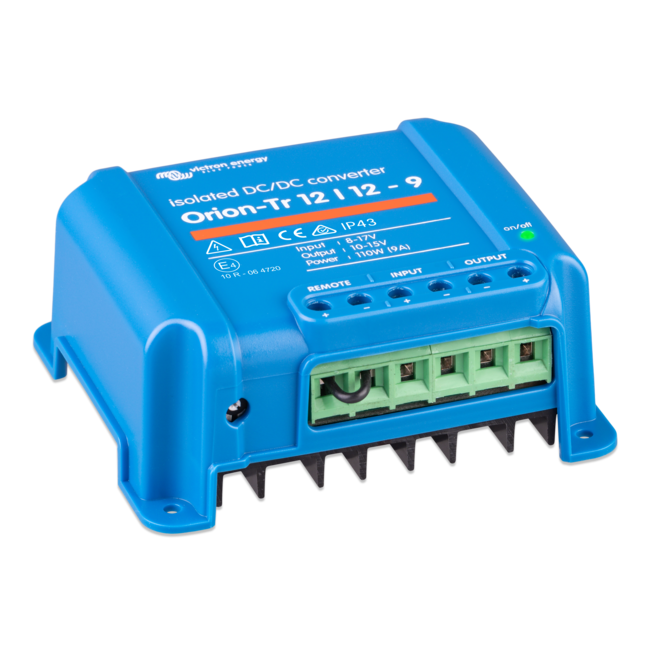

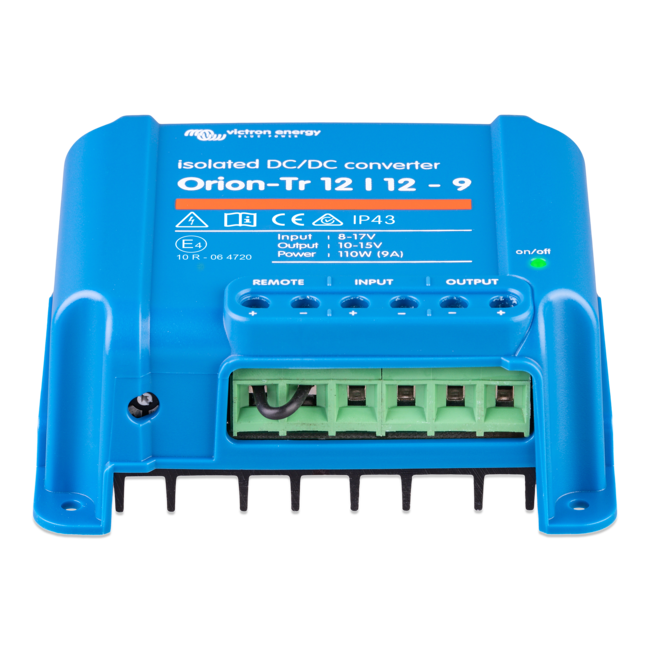

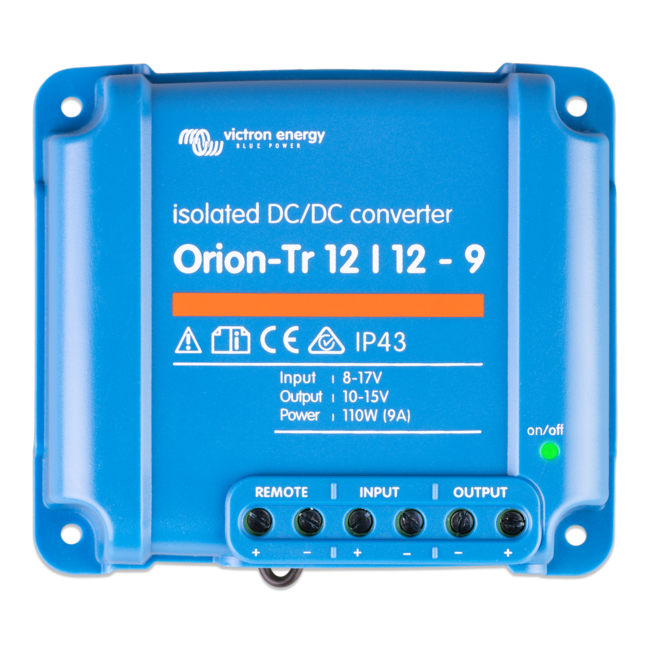

The Victron Orion-Tr isolated DC-DC converter is a reliable solution for creating a 12V output voltage from another 12V source, such as a starter or service battery. This converter is also adjustable and can be used as an advanced battery charger, perfect for charging a 12V battery in a higher-voltage system. Thanks to its isolation, the device protects connected sensitive electronics.
Flexible Application: The adjustable output voltage allows the converter to be used as a battery charger. For instance, to charge a 12V starter or accessory battery in a 24V vehicle system.
Switchable and Parallel: All models are short-circuit proof and can be connected in parallel to increase the output power. An unlimited number of units can be linked in this way.
Remote On/Off Switch: A remote on/off switch eliminates the need for a high-power switch in the input wiring. The device can be operated with a low-power switch or, for example, a vehicle's ignition switch.
Temperature Protection: The converter's output current will automatically decrease in high ambient temperatures to prevent overheating.
IP43 Protection: When installed correctly with the screw terminals facing downwards, the device is protected against splashing water.
Easy Installation: Screw terminals ensure a quick and easy installation without the need for special tools.
This converter is available in three variants: 110W, 220W, and 360W.
