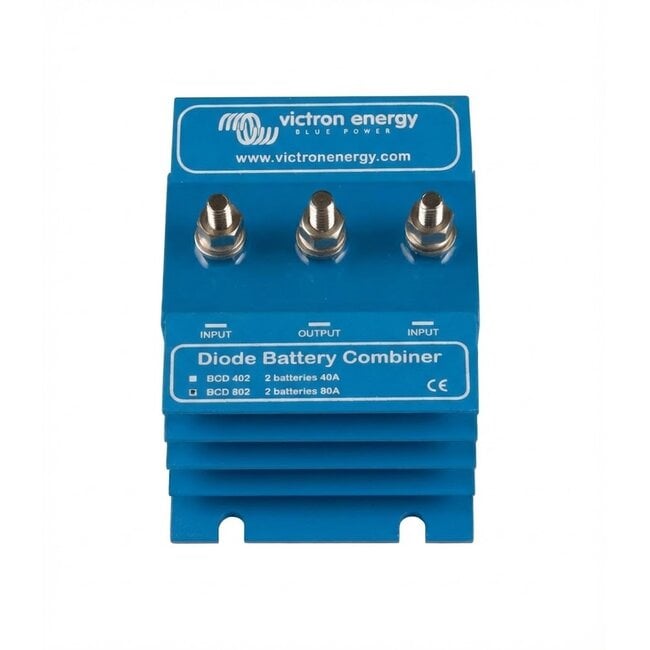

Diode battery combiners are used to guarantee continuous DC power to mission-critical equipment, such as electronic engine control systems. By using a diode battery combiner, two or more DC power sources can be connected in parallel to supply the critical load. If one source fails, the power supply to the load will not be interrupted.
Product Features Argo battery combiners feature a low voltage drop thanks to the use of Schottky diodes: at low current, the voltage drop is approximately 0.3 V, and at rated output, it is about 0.45 V.
Warning: Hot surface! Mount the Argo Diode battery combiner only on a non-flammable surface.
Product Specifications
Maximum continuous current: 40A
Number of batteries: 2
Connection: M6 bolts
Weight: 0.8 kg
Dimensions (hxwxd): 60 x 120 x 75 mm
