Flettner F3000 with Vanworx PETG Roof-to-Headliner Adapter
Want to install a Flettner F3000 roof ventilator in a commercial van, delivery vehicle or campervan with roof insulation or an interior headliner? This Vanworx set combines the wind-powered Flettner F3000 with a specially developed PETG adapter designed by Vanworx.
The adapter bridges the gap between the metal vehicle roof and the interior headliner. Thanks to its adjustable design and the option to cut it to size, it can accommodate different vehicle roof constructions.
Benefits of the Flettner F3000 with Adapter
- Wind-powered ventilation: Operates without electricity, wiring or drawing power from the vehicle battery.
- Exclusive Vanworx adapter: Specially developed to bridge the gap between the vehicle roof and the interior headliner.
- 20 mm adjustment range: Adjustable within this range without cutting.
- Can be cut to size: Removing part of the adapter allows it to accommodate smaller roof-to-headliner gaps.
- Durable PETG: The adapter is manufactured from strong PETG plastic.
- Choice of configurations: The F3000 is available with a standard or narrow mounting base, in black or white.

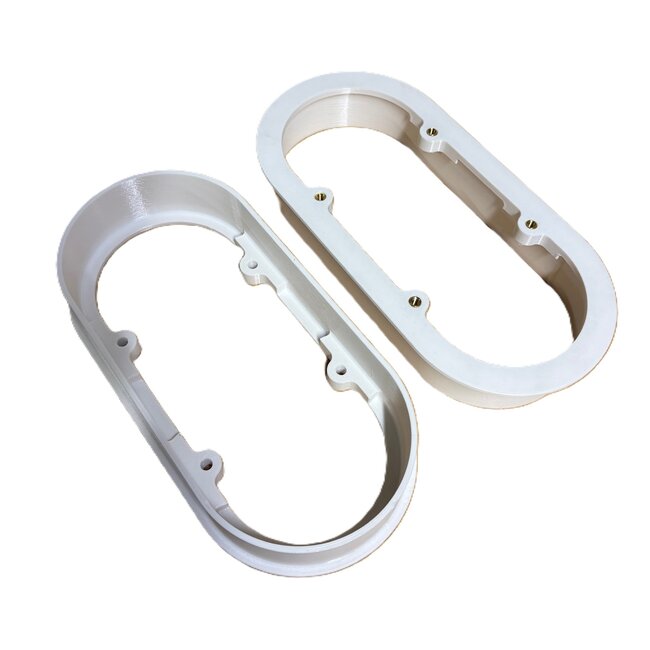

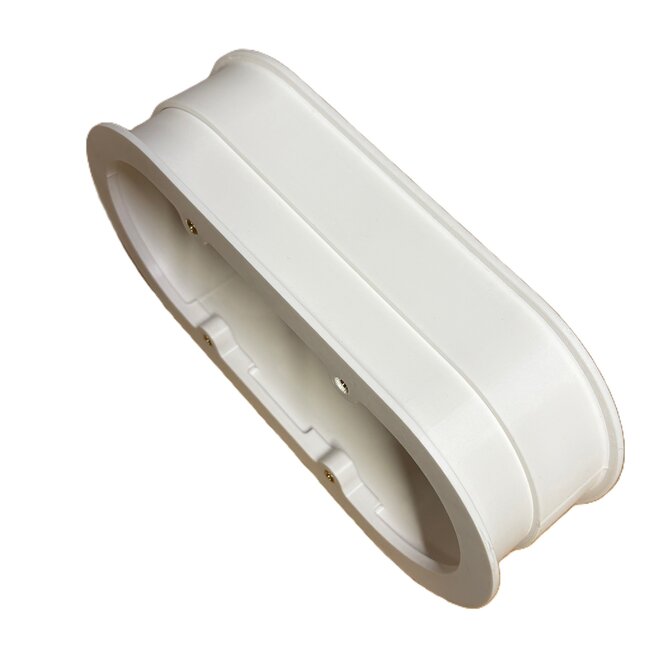

Exclusive Vanworx PETG Roof-to-Headliner Adapter
Many commercial vehicles and campervans have a gap between the metal roof and the interior headliner. When installing a roof ventilator, this gap needs to be bridged correctly.
Vanworx has developed its own adapter for this purpose. Made from PETG, it is specifically designed for installation with the Flettner F3000 roof ventilator.
Adjustable and Customisable

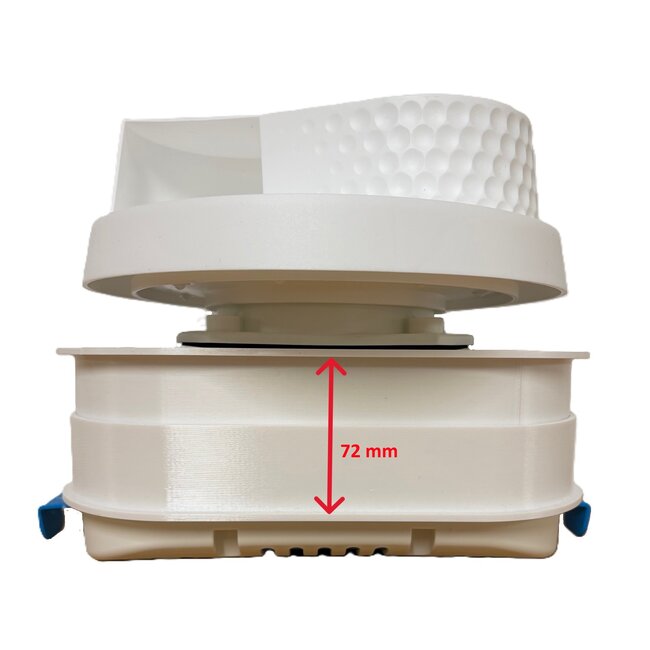

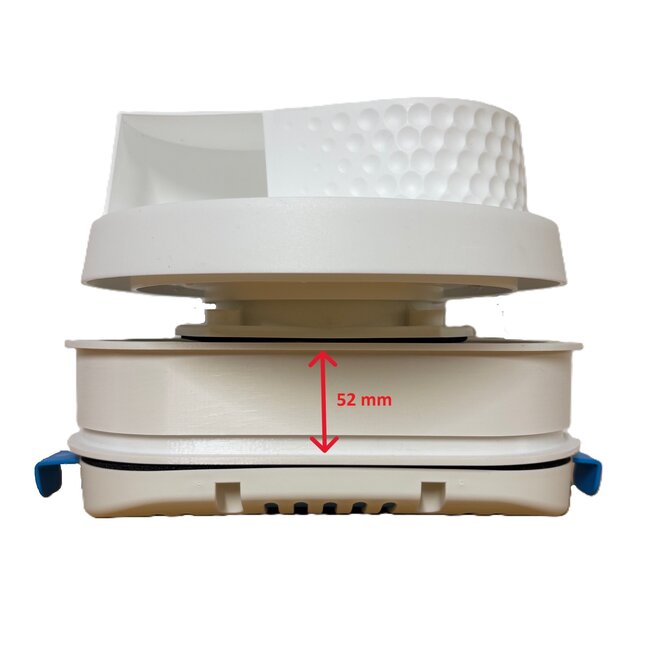

The adapter has a standard adjustment range of 20 mm. If the gap between the vehicle roof and the headliner is smaller than the normal adjustment range, the adapter can be shortened to fit. This makes it suitable for different roof constructions.
Installation advice: Measure the distance between the vehicle roof and the interior headliner before installation. Check whether the adapter fits directly or needs to be shortened. Also check the available mounting space on the roof.
What Is Included?
- 1 x Flettner F3000 wind-powered roof ventilator in the selected configuration
- 1 x adjustable PETG roof-to-headliner adapter developed by Vanworx
Please note: A floor ventilation grille and MS polymer installation sealant are not included. These accessories can be purchased separately if required.
Technical Specifications

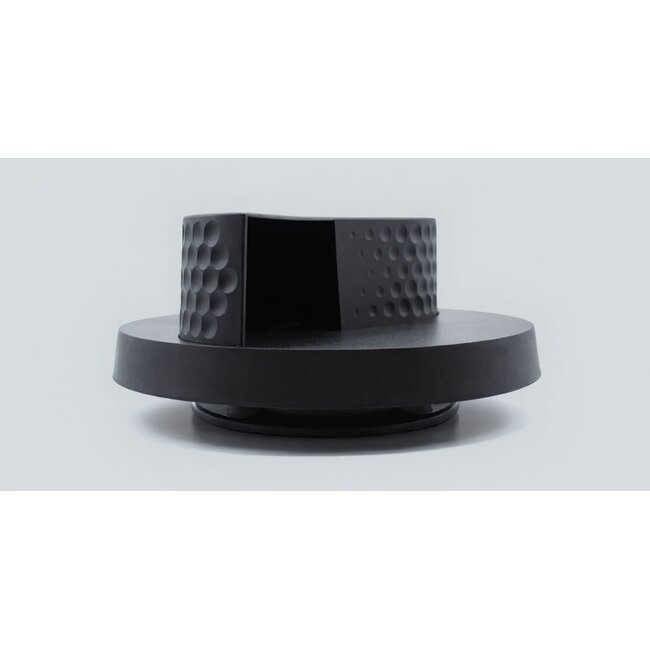

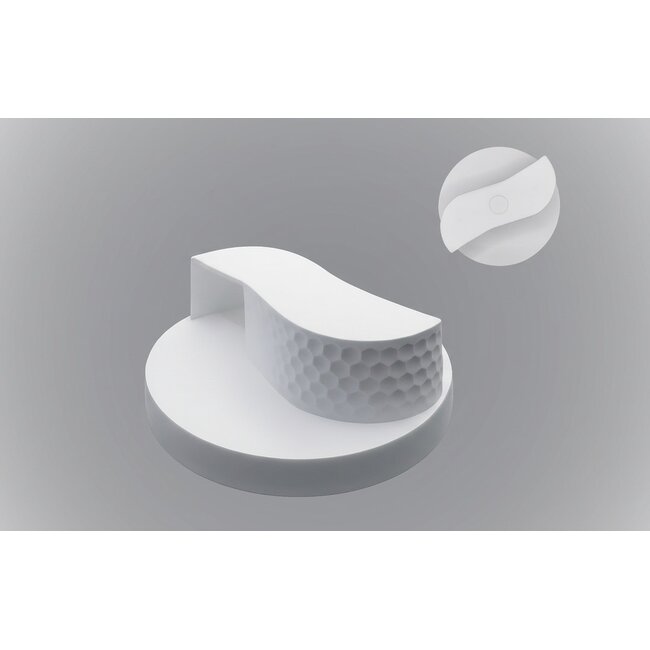

Flettner F3000 Roof Ventilator
- Operation: Wind-powered, no electrical connection required
- Diameter: 226 mm
- Height above roof: 105 mm
- Standard mounting base width: 145 mm
- Narrow mounting base width: 108 mm

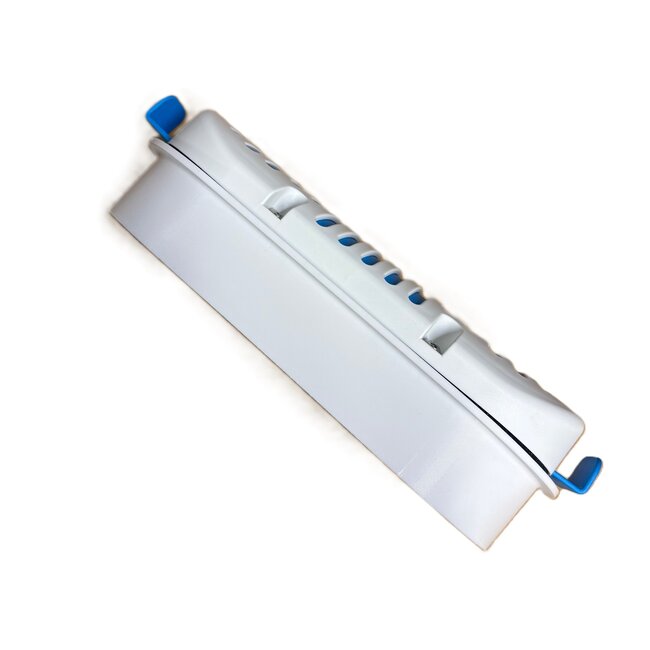

- Interior shutter dimensions: 238 x 110 x 32 mm
- Colour: Black or white
Vanworx Roof-to-Headliner Adapter
- Material: PETG
- Developed by: Vanworx
- Adjustment range: 20 mm
- Customisation: Can be shortened to accommodate smaller gaps
- Application: Bridges the gap between the vehicle roof and interior headliner
Applications
- Commercial vans: Helps extract warm, humid and stale air from the cargo area.
- Campervans and motorhomes: Suitable for vehicles with roof insulation and a finished interior headliner.
- Service vehicles and mobile workshops: Supports natural air exchange while driving and when sufficient wind is present.
- Pet and dog transport: Supports air exchange. Additional ventilation and temperature monitoring remain essential.
Order the Flettner F3000 with Vanworx Adapter
This set combines reliable, wind-powered roof ventilation with a practical, adjustable installation solution for vehicles with an interior headliner.
Select your preferred colour and mounting base. Need advice on dimensions or installation? Contact Vanworx for personal assistance.
