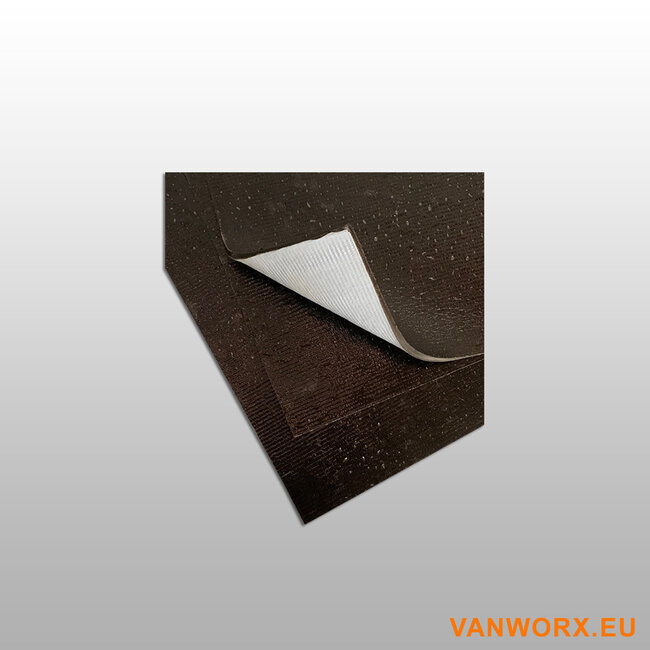

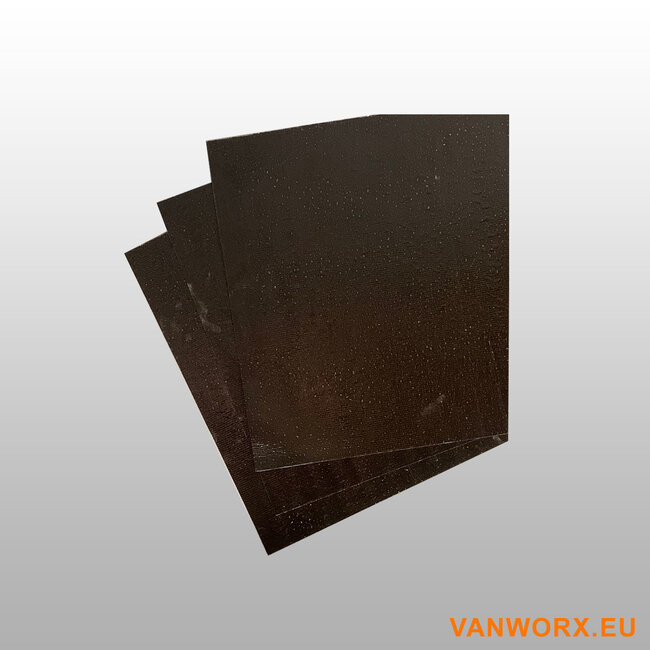

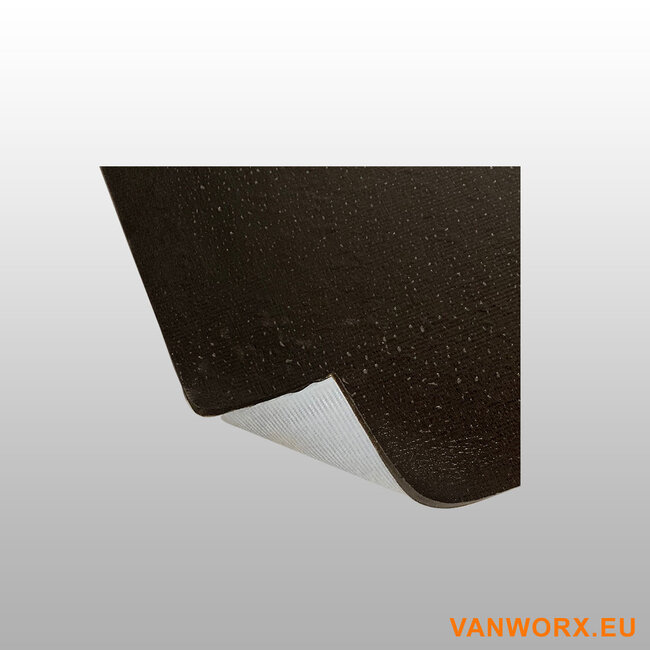

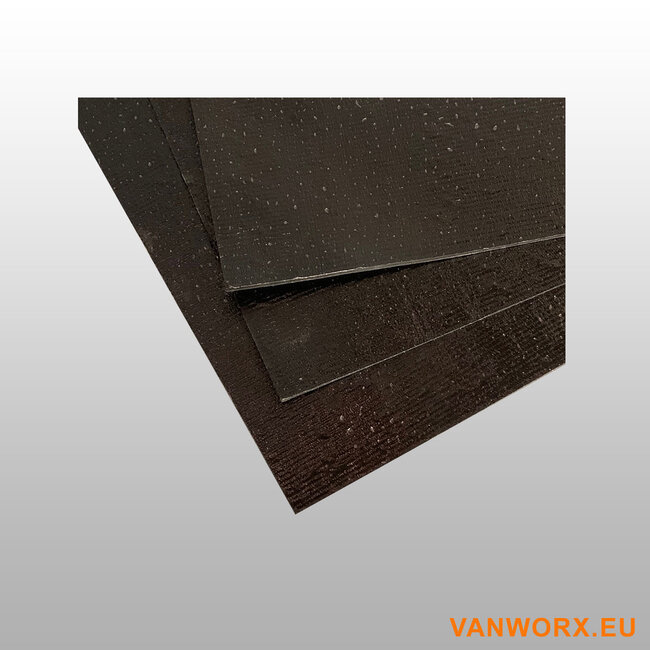

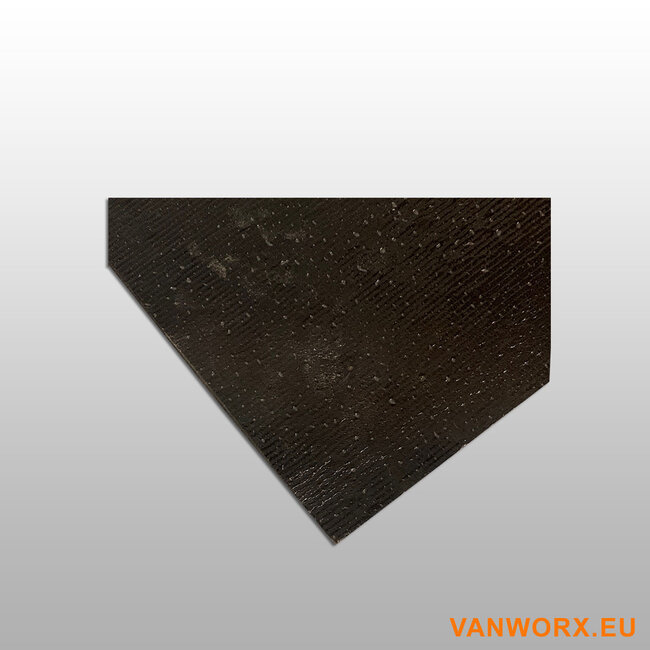

The Vibraflex UF (Ultra Flexible) anti-vibration mat is the self-adhesive solution for effectively isolating vibrations (resonances) and improving the sound insulation of sheet materials. This high-quality mat is specially developed for use on aluminum, plastic, polyester, and steel. Made from flexible bitumen plastic and special fillers, the Vibraflex UF stands out due to its unique properties that make processing extremely easy.
Key Features:
Ultra Flexible (UF): The mat is exceptionally pliable, even at temperatures well below 15 degrees, making installation in cold conditions surprisingly easy.
Unbreakable: The polyester fabric inlay ensures that the product will not break or tear, regardless of the temperature.
High Damping Capacity: The mat combines high mass (5 kg) with high internal damping for superior vibration isolation.
Dual Action: In addition to the strong anti-drumming effect (against resonance), the airborne sound insulation of the sheet material is also significantly improved.
Self-Adhesive: Equipped with a strong bitumen adhesive for quick and durable attachment.
Advantages:
Easy Processing: Installation is effortless, even at low temperatures, thanks to extreme flexibility.
Durable Solution: The polyester inlay guarantees a long lifespan.
Less Resonance: Eliminates bothersome vibrations in sheet materials, leading to a quieter environment.
Improved Comfort: Increases acoustic comfort in vehicles, machinery, or enclosures.
Application Examples: Vehicles (body panels, doors, roofs, floors), mechanical engineering (metal enclosures), vibration reduction in equipment made of steel or aluminum.
Technical Specifications:
Dimensions per mat: 250 x 250 x 3.5 mm
Weight: 5 kg (Note: this is very high for the dimensions, please check the unit)
Material: Flexible bitumen plastic with fillers and polyester fabric inlay
Color: Black
Which type to apply?
• Vibraflex UF 50: (5 kg / m²) Steel thickness up to 1 mm, aluminum thickness 2 mm.
• Vibraflex UF 80: (8 kg / m²) Steel thickness up to 2 mm, aluminum thickness 3 mm
PRICE IS PER PANEL 250 x 250 x 3,5 mm
