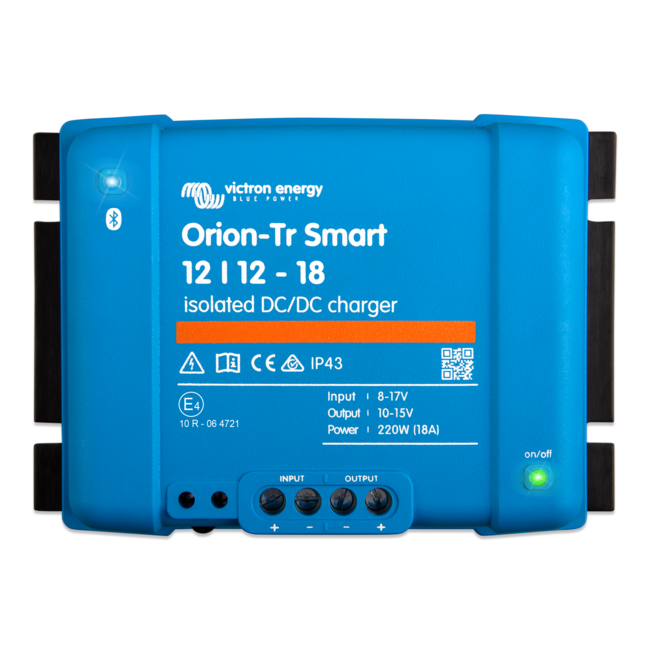

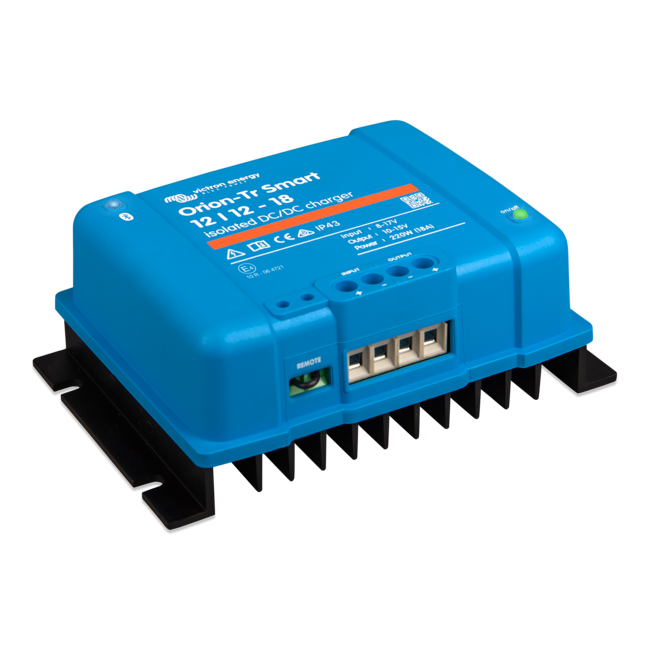

The Victron Orion-Tr Smart is a professional and isolated DC-DC battery charger that combines state-of-the-art technology with a robust design. This smart 3-stage charger is specially designed for effectively charging your service battery from a starter battery, especially in vehicles and boats with smart alternators (Euro 5/6). With built-in Bluetooth, you can easily monitor, configure, and operate the charger via your smartphone or tablet.
Key Features & Benefits
Smart Alternator Compatibility: The charger automatically detects if the engine is running, preventing unwanted discharge of the starter battery. This makes it ideal for modern vehicles.
Fully Programmable: Configure the charging algorithm (bulk, absorption, float) for your specific battery, or choose a fixed output voltage. The charger is suitable for both lead-acid and lithium batteries.
Adaptive 3-Stage Charging Algorithm: The absorption time for lead-acid batteries is automatically adjusted to the depth of discharge to prevent overcharging. For lithium batteries, the absorption time is fixed (default 2 hours).
Easy Remote Operation: The charger can be operated remotely via an external on/off switch or relay, which provides flexibility in installation.
Scalable System: You can connect an unlimited number of units in parallel to increase the output power, with each unit capable of delivering up to 400W.
Robust & Safe: Protected against high temperatures and featuring an IP43 rating (when installed correctly). The screw terminals make installation easy, with no special tools required.
Wide Applicability: Available for 12V and 24V systems in various models. The charger maintains full power up to 40°C and operates up to 55°C.
Technical Specifications
Input Voltage: 12V (range: 10-17V)
Output Voltage: 12V (range: 10-15V)
Output Current: 18A
Power: 220W
Galvanic Isolation: Yes
Dimensions (h x w x d): 130 x 186 x 80 mm
Weight: 1.3 kg
Protection: IP43 (when installed with terminals facing downwards)
