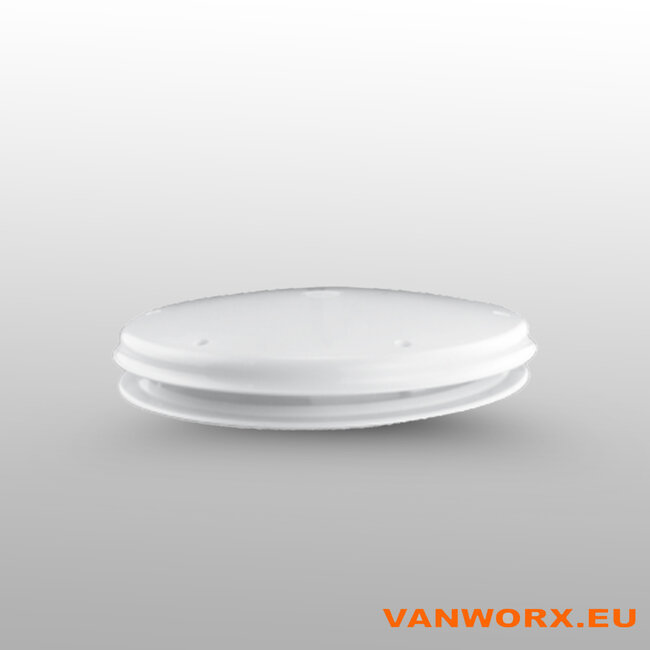

Electric Round Roof Ventilator 24 Volt - Complete Solution for Venting and Aeration
Introduction: Create a healthy and fresh climate in your commercial vehicle, camper, car, or even trailer with G&C's round electric roof ventilator. This complete 24-volt ventilation solution provides both air intake and exhaust, effectively managing moisture, odors, and heat. With a robust design and extensive scope of supply, this unique fan is ready for immediate installation. We are the only ones on the market offering this complete kit!
Key Features:
Electric 24 Volt: Connects directly to your vehicle's 24V system, with a power consumption of 80 Watts.
Bidirectional Airflow: Suitable for both air intake and exhaust, easily controlled with the optional 3-position switch.
High-Quality ABS: Made from durable material, available in sleek black and white.
Compact Design: With an installation height of only 62 mm and a roof opening of 224 mm, it fits discreetly on your roof.
Powerful Air Displacement: Moves an impressive 850 m³/hour, for rapid and effective air exchange.
Quiet Operation (optional): The noise level of 52 dB at 2600 RPM can be further reduced with an optional speed controller.
Benefits of this Complete Kit:
Unique complete delivery: Standard supplied with a custom internal grille (PVC grey), insect/snow filter, sealing ring for a flat roof, installation manual, and drilling & sawing template.
Extremely fast installation: The holes in the internal grille precisely align with the ventilator's ring, reducing drilling and significantly speeding up installation.

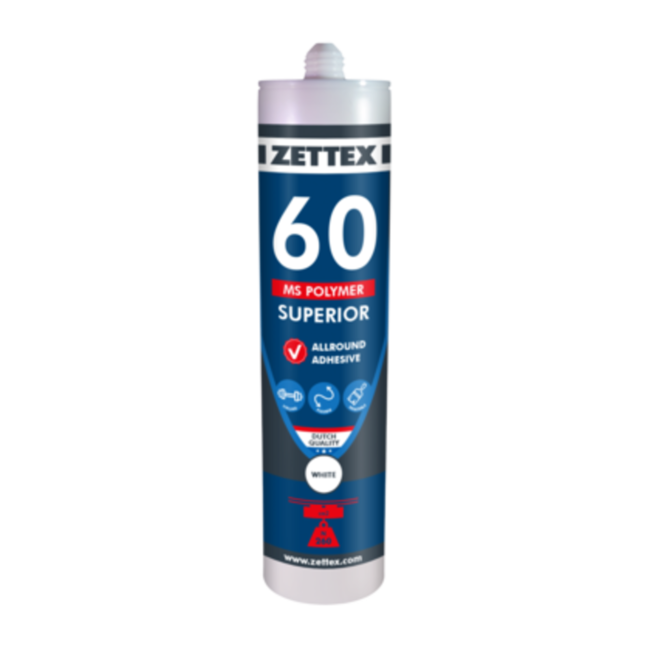

Ready for immediate use: Includes polymer sealant and fastening material for roof thicknesses from 1-3 mm.
Improved air quality: Prevents stale air, condensation, and mold, ensuring a more comfortable climate.
Versatile applications: Ideal for damp cargo areas, animal transport, chemical substances, campers, caravans, trailers, houseboats, and mobile workshops.
Application Examples:
Damp cargo areas of vans and commercial vehicles
Safe animal transport
Transport of chemical substances
Campers and caravans (exhaust during cooking, intake during sleeping, etc.)
Trailers
Houseboats
Mobile workshops
Technical Specifications:
Material: High-quality ABS
Function: Air intake and exhaust
Voltage: 24 Volt
Power Consumption: 80 Watt
Noise Level: 52 dB
Speed: 2600 RPM

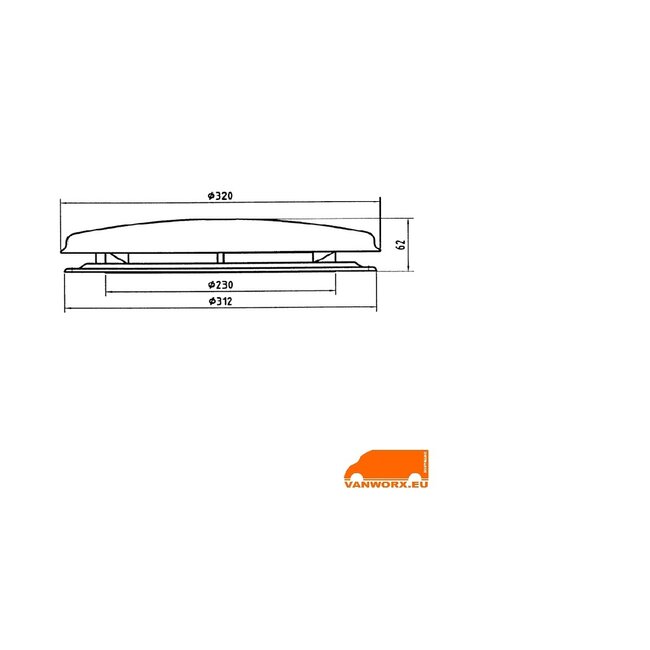

Roof Opening: 224 mm
Installation Height: 62 mm
Air Displacement: 850 m³ per hour
Available Colors: Black and White
Installation: This complete kit is designed for easy and quick installation. The included sealing ring, polymer sealant, and fastening material for roof thicknesses of 1-3 mm provide a solid foundation. Refer to the detailed installation manual and use the drilling and sawing template for precise and efficient installation.
Optional Accessories: A 3-position switch (sold separately or in a connection set) is needed for control (intake/exhaust). For optimal airflow, we recommend floor ventilation. For quieter operation, a speed controller/RPM regulator is advisable.
Conclusion: Choose G&C's round electric roof ventilator 24 Volt and benefit from a complete, powerful, and professional ventilation solution. Ideal for those seeking a high-quality and efficient solution for a healthy and comfortable climate in any type of vehicle or space.
