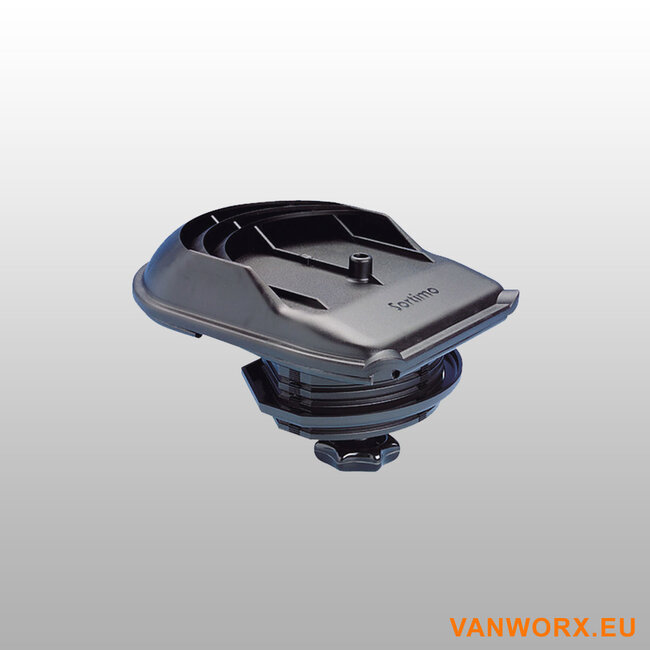

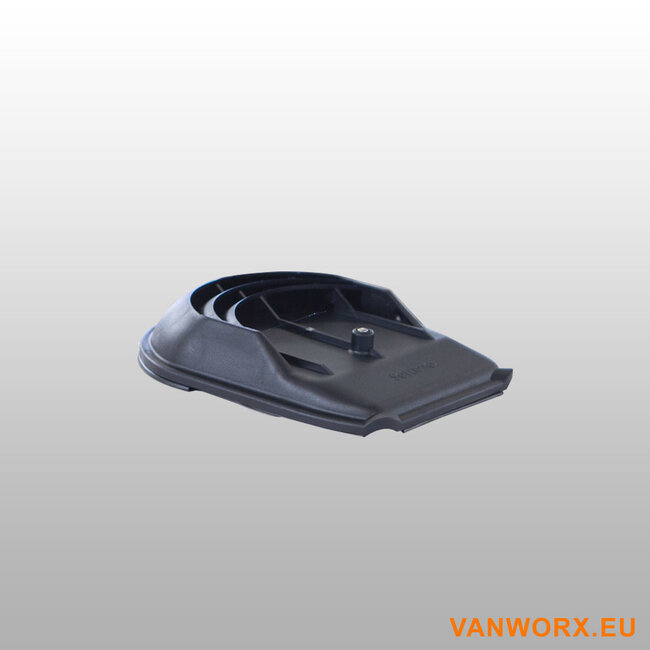

Sortimo Reversible Roof Vent | Dual Function for Optimal Airflow

Regulate the air circulation in your van with the ingenious Sortimo Reversible Roof Vent. This smart vent, made from durable UV-resistant and impact-resistant plastic, offers a unique dual function. By simply rotating the vent, it can be used as either a supply or an exhaust system, ensuring a permanent flow of fresh air in combination with a floor or side vent.

Advantages:

• Ingenious Dual Function: Thanks to its rotatable design, the roof vent functions as either an active ventilation system (air supply with overpressure) or an extraction system (air exhaust with underpressure).
• Flexible Air Circulation:
  • Ventilating (Overpressure): The roof vent blows air inwards, effectively pushing heavy gases outwards via a floor or side vent. Ideal for preventing fume build-up.
  • Extracting (Underpressure): Fresh air is drawn in via the floor or side vent, while light gases and stale air are exhausted upwards through the roof vent. Perfect for rapid air exchange.
• Durable Material: Made from UV-resistant and impact-resistant plastic for a long lifespan and weather resistance.

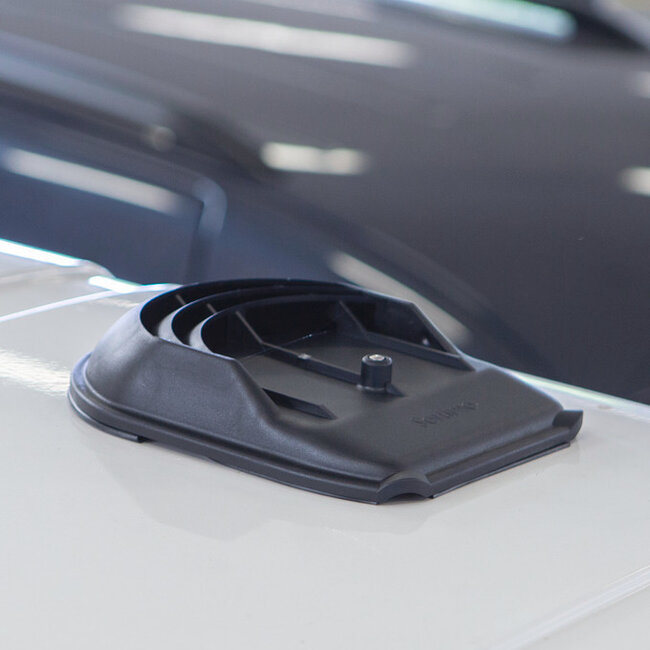

• Compact and Aesthetic: With a build-up height of only 48.5 mm, the vent integrates discreetly onto your vehicle's roof.
• Wide Range of Applications: Extremely suitable for various situations such as ventilating damp cargo areas, dog transport, or the safe transport of chemical substances.

Specifications:

• Material: UV-resistant, impact-resistant plastic
• Function: Reversible (ventilation/air supply and extraction/air exhaust)
• Color: Available in black
• Dimensions (LxWxH): 258 mm x 196 mm x 48.5 mm (external dimensions)

Package Contents:

• 1 x Sortimo Reversible Roof Vent

Operating Instructions Roof Ventilator

1. Ventilate/Supply (arrow on star knob points opposite to driving direction): Argon, Propane (C₃H₈), Carbon dioxide (CO₂), n-Butane (C₄H₁₀), Carbon monoxide (CO), Krypton (Kr), Nitrogen dioxide (NO₂), Nitrogen monoxide (NO), Xenon (Xe).

2. Exhaust/Vent (arrow on star knob points in driving direction): Acetylene (C₂H₂), Helium (He), Nitrogen (N₂), Hydrogen (H₂).

3. Maintenance: To ensure trouble-free operation, always keep the ventilator free of debris such as leaves, snow, etc.

Operating Instructions Roof Ventilator

1. Ventilate/Supply (arrow on star knob points opposite to driving direction): Argon, Propane (C₃H₈), Carbon dioxide (CO₂), n-Butane (C₄H₁₀), Carbon monoxide (CO), Krypton (Kr), Nitrogen dioxide (NO₂), Nitrogen monoxide (NO), Xenon (Xe).

2. Exhaust/Vent (arrow on star knob points in driving direction): Acetylene (C₂H₂), Helium (He), Nitrogen (N₂), Hydrogen (H₂).

3. Maintenance: To ensure trouble-free operation, always keep the ventilator free of debris such as leaves, snow, etc.

Please note:

• To optimally utilize the dual function of this roof vent (as both a supply and exhaust system) and to ensure permanent airflow, the combination with a suitable floor vent or side vent is absolutely necessary.
