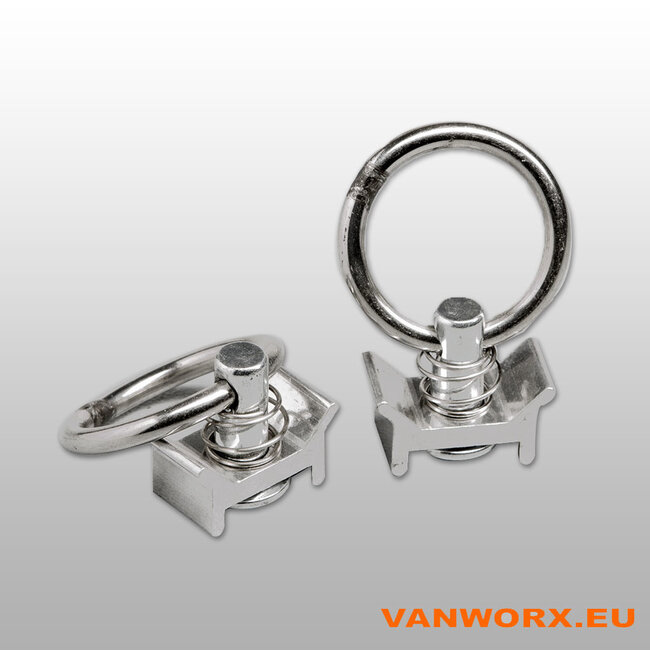

Single Stud Fitting (Single Airline Rail Connector)

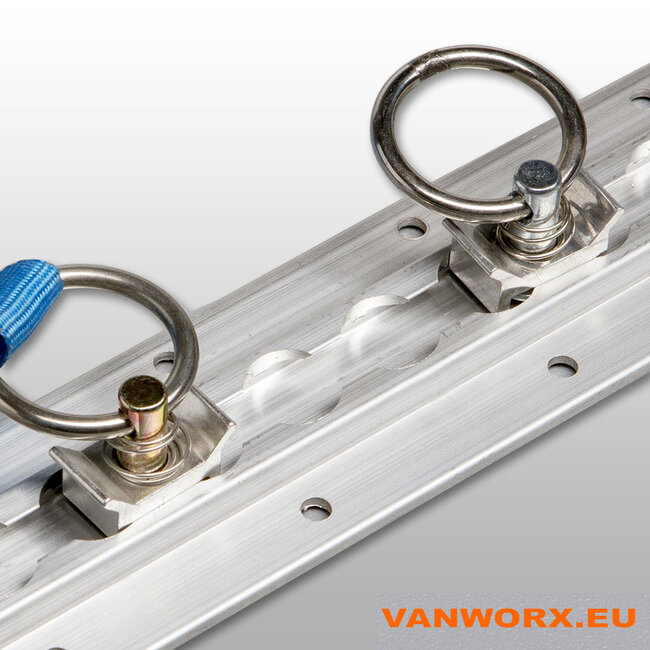

Introduction & Function: The Single Stud Fitting is a robust metal connector that allows you to quickly and securely create a flexible tie-down point in all your airline rails. The large, sturdy ring effortlessly accepts a wide range of hooks, tie-down straps, and snap fasteners.
Ease of Use & Installation:
Mechanism: The fitting features an easy-to-use, spring-loaded plunger-style mechanism.
Operation (Steps):
Place the thumb in the ring and push it down.
Simultaneously lift the clip with your index and middle fingers.
Insert the bottom disc into the desired round hole of the rail.
Slide the fitting in either direction until it rests halfway between two of the rail's openings.
Drop the clip so it securely locks into the round slots on both sides of the stud.
Specifications:
Material: Metal (Large Ring & Stud).
Compatibility: Suitable for all standard airline rails.
