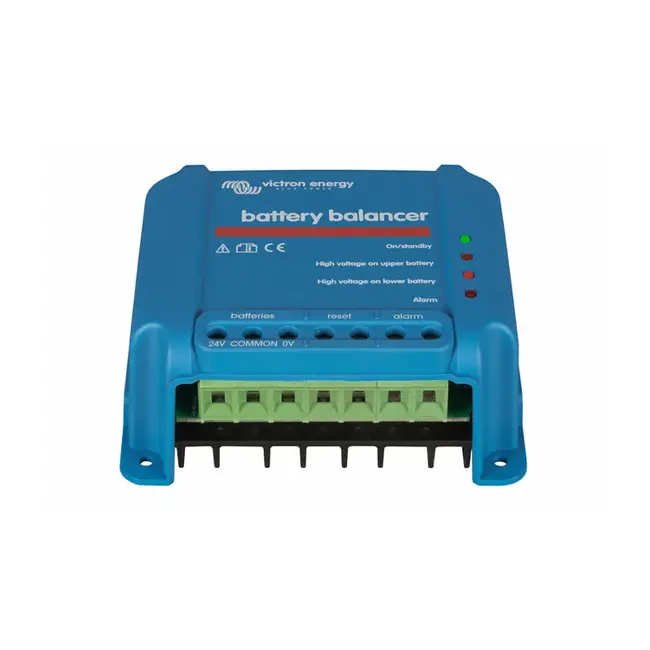

The Battery Balancer equalizes the state of charge of two series-connected 12V batteries (24V system) or multiple parallel strings. When the charge voltage exceeds 27.3V, the balancer starts comparing voltages. It draws a current up to 0.7A from the battery with the highest voltage to bring both units into balance.
The Problem: Imbalance significantly shortens battery life due to overcharging or sulfation.
The Solution: Active balancing for optimal condition and maximum service life.
LED Indicators: Green (active), Orange (balancing active), and Red (alarm for >0.2V deviation).
Specs: Engagement level 27.3V, built-in alarm relay, weight 0.6 kg.
