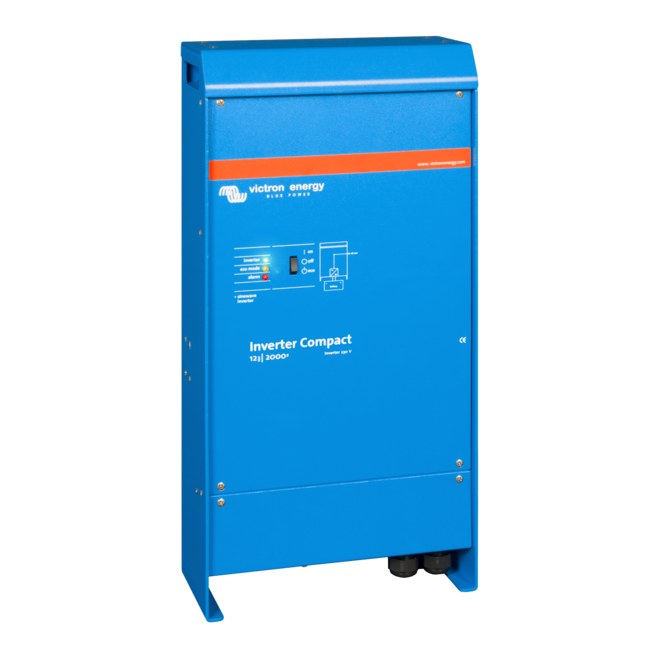

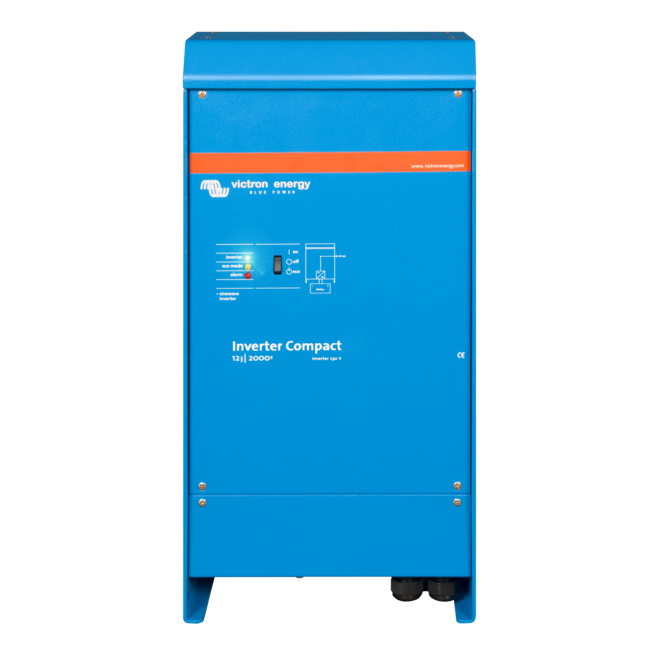

Victron Phoenix Inverter C 12V 2000VA
The Victron Phoenix Inverter C 12/2000 is a powerful 12V to 230V pure sine wave inverter developed for professional applications where a reliable and stable AC voltage is required. Thanks to advanced SinusMax technology, the inverter delivers high peak power, allowing equipment with high start-up loads, such as compressors, pumps, refrigerators, and power tools, to start smoothly.
The inverter converts 12V battery power to a stable 230V AC output and is ideal for campervans, boats, commercial vehicles, off-grid systems, and professional energy setups. Thanks to the pure sine wave output, sensitive equipment such as laptops, televisions, measuring instruments, and battery chargers can be powered safely and without interference.
Via the VE.Bus port, the Phoenix Inverter C can be easily configured, monitored, and integrated into larger Victron systems. In addition, the inverter supports parallel and 3-phase operation, allowing multiple units to be combined when higher power or a three-phase system is required.
The robust metal housing, active cooling, and high efficiency ensure reliable performance and make the Phoenix Inverter C suitable for intensive professional use.
Key features
12V DC to 230V AC pure sine wave inverter
2000VA output power
1600W continuous output power
4000W peak power
SinusMax technology for high inrush currents
VE.Bus communication for configuration and monitoring
Supports parallel and 3-phase operation
Maximum efficiency up to 92%
Low self-consumption
Robust metal housing with active cooling
Suitable for campervans, boats, commercial vehicles, and off-grid setups
Technical specifications
Battery voltage: 12V DC
Output voltage: 230V AC
Output power: 2000VA
Continuous output power: 1600W
Peak power: 4000W
Maximum efficiency: 92%
Communication: VE.Bus
Dimensions (H × W × D): 520 × 255 × 125 mm
Weight: approx. 13 kg
Datasheet Phoenix Inverter Compact
