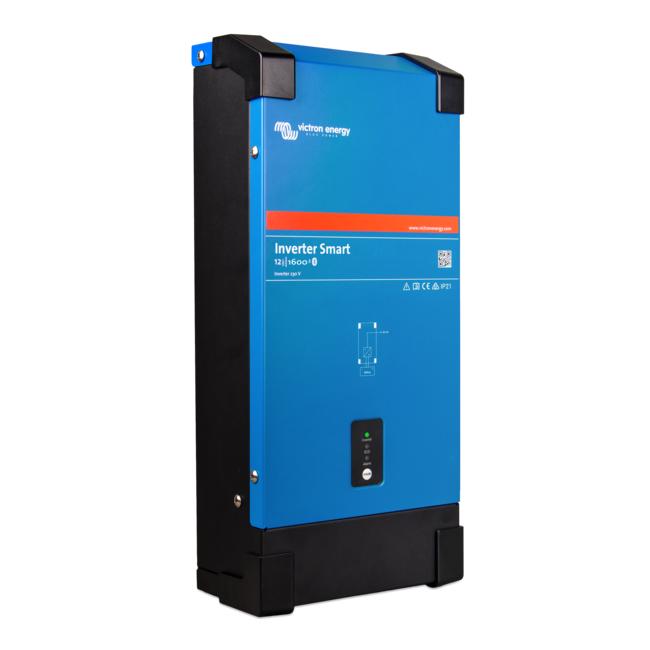

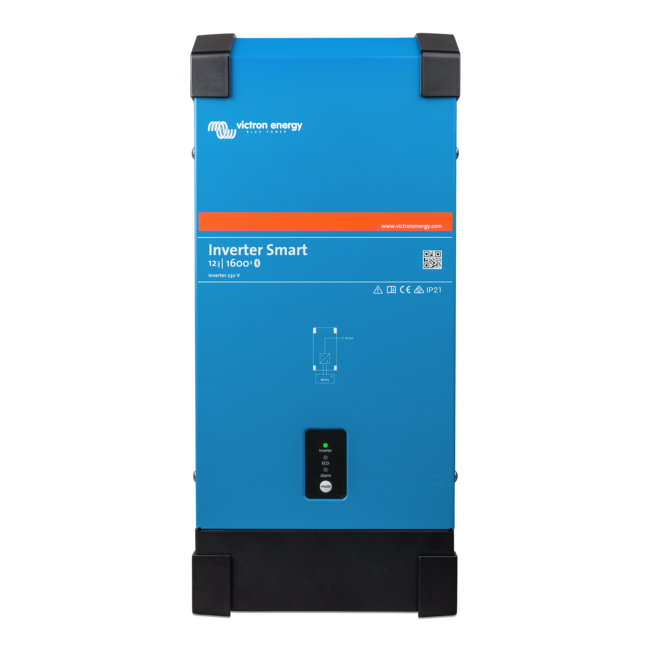

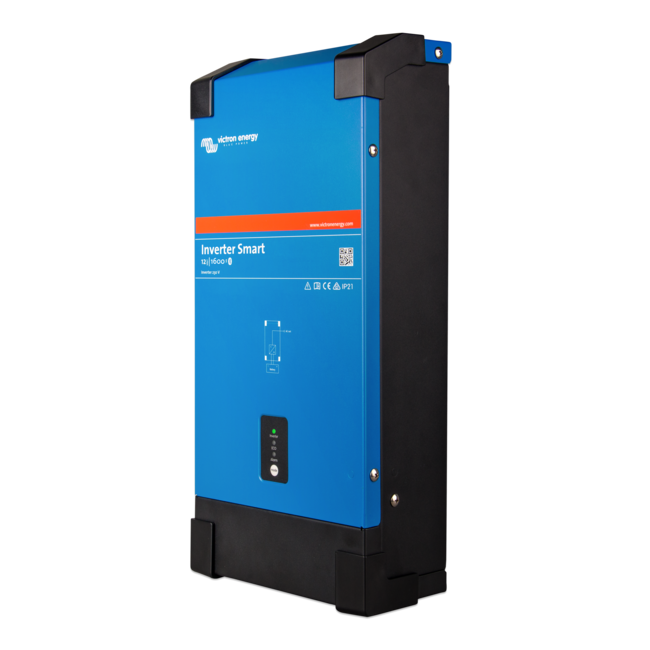

The Phoenix Inverter Smart is a reliable and efficient inverter with a sleek, all-metal design. Models are available in 1600 VA, 2000 VA and 3000 VA for 12V-systems. This model delivers a continuous power of 1600 VA / 1300 Watts and can handle peaks of up to 3000 Watts. This makes the inverter powerful enough to run most appliances in your car, boat, caravan, or home.
A toroidal transformer provides a high surge power capacity, stable voltage and frequency, and high-quality sine wave output. Installation is straightforward thanks to the professional terminals and slim design.
The integrated Bluetooth functionality makes the inverter fully configurable with your smartphone or tablet. Easily adjust settings such as alarms, voltage shutdown, eco mode, and more.
An external on/off switch can be connected to a two-pole connector. The H terminal (left) of this connector can be switched to the battery positive, or the L terminal (right) can be switched to the battery negative (for example, the vehicle chassis).
Input Voltage: 12 Volts
Output Voltage: 230 Volts
Continuous Power: 1600 VA / 1300 Watts
Peak Power: 3000 Watts
Dimensions (H x W x D): 485 x 219 x 125 mm
Weight: 12 kg
Datasheet Phoenix Inverter Smart
