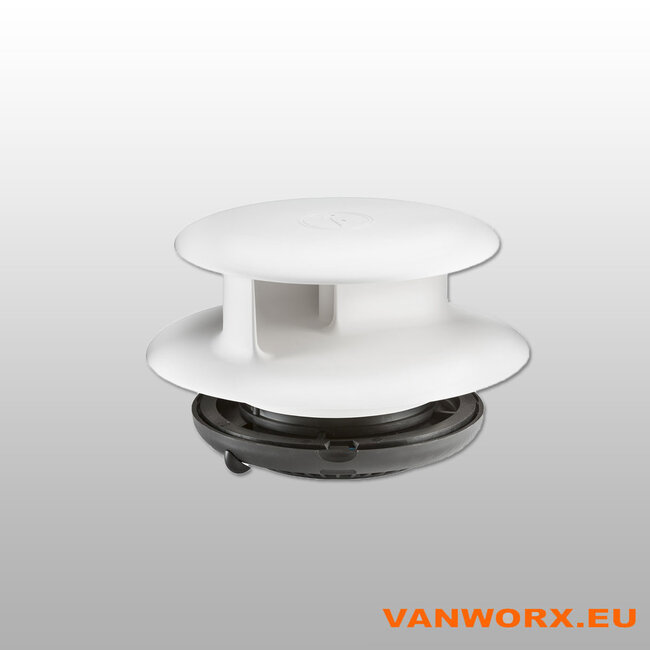

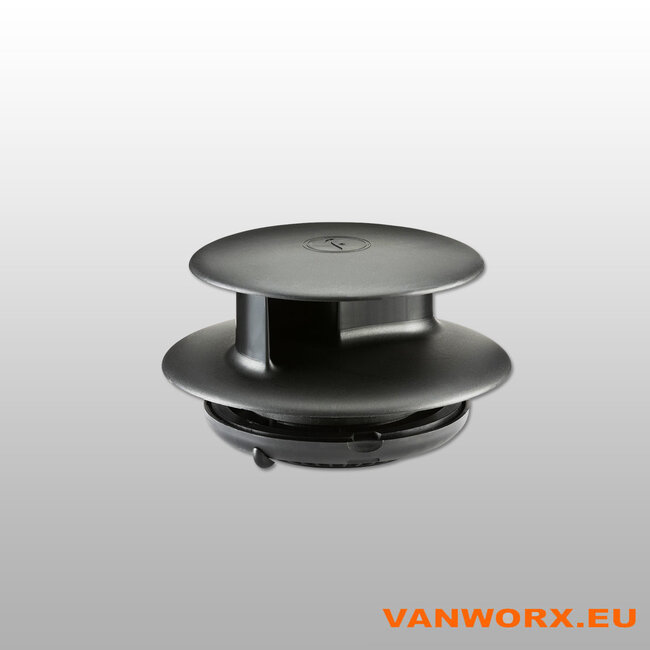

The Flettner TCX-2 roof ventilator is a high-performance wind-powered extraction fan designed for commercial vans, trucks, trailers, campervans and other vehicles with a suitable roof structure. Its advanced rotor and integrated air concentrator provide powerful ventilation without an electrical connection.
According to Flettner, the TCX-2 delivers almost twice the extraction performance of the Flettner 2000 under comparable conditions, making it particularly suitable for larger cargo areas.
The TCX-2 operates using natural wind and airflow generated while driving. It can also extract air when the vehicle is stationary, provided there is sufficient wind.
The circular standard base has a diameter of 145 mm and is intended for sufficiently wide, flat mounting surfaces.
The oval narrow base is 108 mm wide and is suitable for various ribbed vehicle roofs with narrower flat mounting areas.
Important: Measure the available flat mounting area before ordering. For particularly narrow roof profiles, the Flettner Slimline LPV may be a more suitable option.
Please note: Standard mounting and sealing components are already included. Additional sealant or separate fixings are not normally necessary for a suitable installation carried out according to Flettner instructions.

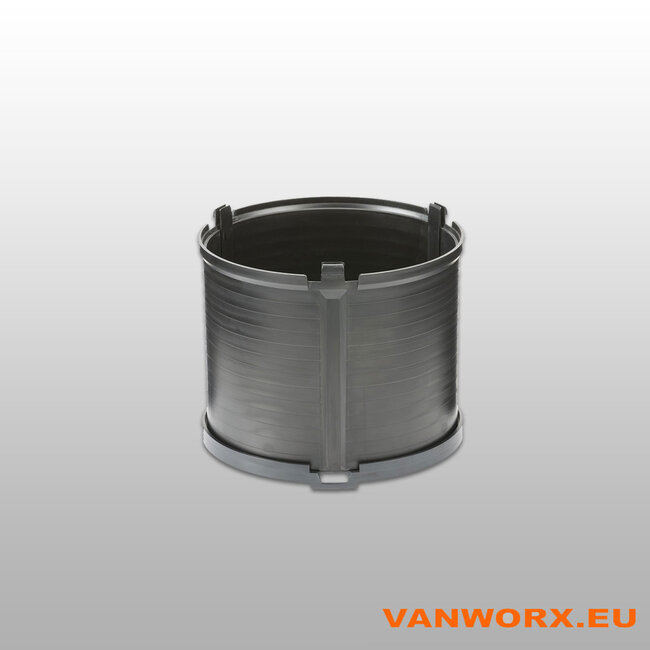

Vehicles with interior headlining may require a separately available Flettner TCX-2 adapter to bridge the space between the outer roof and interior lining.

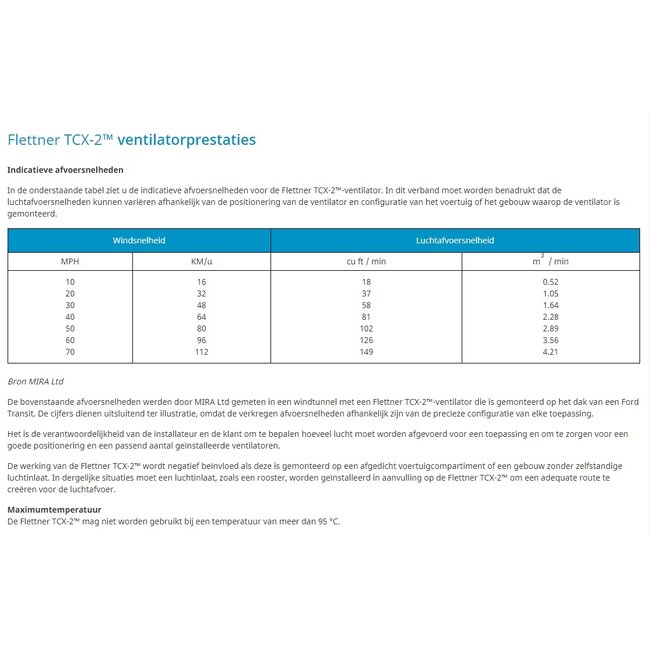

Actual airflow depends on wind speed, installation position, air inlets and vehicle design. The stated extraction rate is an indicative test figure rather than a guaranteed constant output.

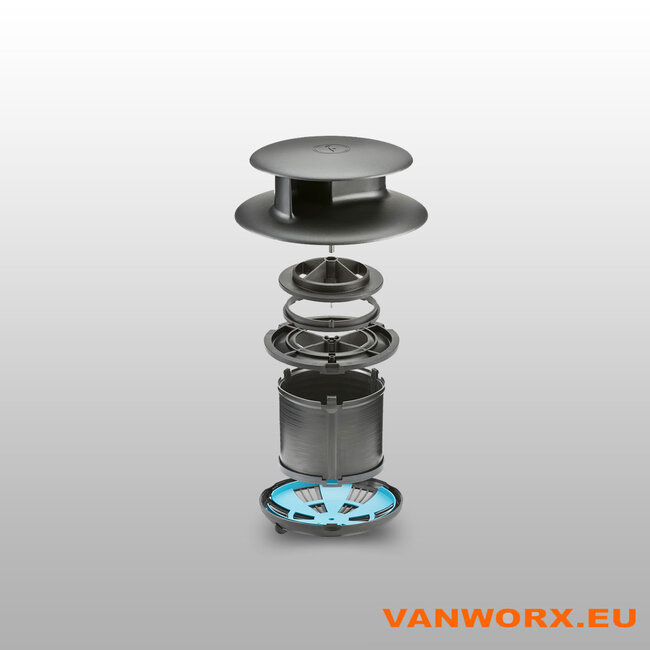

Air flowing around the roof ventilator causes its rotor to turn. The integrated air concentrator and centrifugal fan help extract air from inside the vehicle.
As the ventilator has no electric motor, performance varies with available wind. Constant extraction cannot be guaranteed in completely still conditions.
Replacement air must be able to enter the vehicle for effective extraction. A suitable floor ventilation grille provides an additional air inlet.
Ventilation performance may be reduced if the cargo compartment is completely sealed.
The specified roof opening is Ø98 mm. Always use the supplied installation template and follow the manufacturer's instructions.
Check roof profile, thickness and mounting space. Vehicles with a headlining may require the optional TCX-2 adapter.
The TCX-2 is designed for higher extraction requirements, particularly in larger spaces. The Slimline LPV is a lower-profile alternative for limited roof clearance or particularly narrow ribbed roofs.
No. It operates entirely using wind.
Yes, when sufficient natural wind is available.
Yes. The standard package includes the closable interior shutter and mounting components.
These are the base dimensions: a 145 mm circular standard base or a 108 mm wide oval narrow base.
No. Additional floor ventilation grilles are available separately.
Choose the Flettner TCX-2 for powerful wind-driven roof extraction without electrical power.
Select the correct base and colour for your vehicle. Vanworx also offers matching floor ventilation products and the optional TCX-2 adapter.
