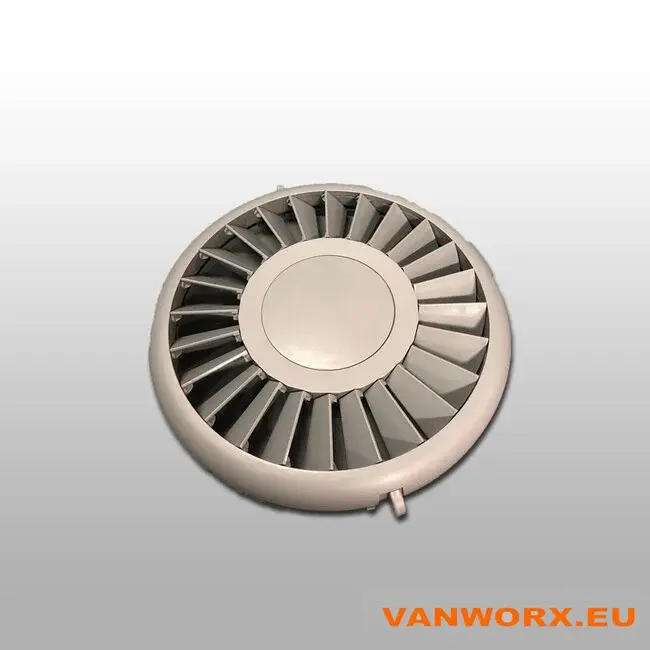

G&C Systems Round 12V Premium Roof Ventilation Kit with 3-Position Switch, Speed Controller and Floor Vent
€440,44 €364,00
Add to cart
G&C Systems Round 12V Premium Roof Ventilation Kit with 3-Position Switch, Speed Controller and Floor Vent

G&C Systems Round 12V Premium Roof Ventilation Kit with 3-Position Switch, Speed Controller and Floor Vent

€440,44 €364,00 Incl. tax Excl. tax
In stock (1)

G&C Round 12V Premium roof ventilation kit for vans and campervans. 80 W, 850 m³/h. Includes 3-position switch, speed controller, closable interior grille, Ø129 mm floor ventilation and mounting accessories. Read more.

Make a choice
Premium set Round Black
5000.303B
In stock
5000.303B
€440,44 €364,00
Premium set Round White
5000.303W
In stock
5000.303W
€440,44 €364,00
  • Ordered before 3pm on workdays = shipped today!
  • Global Shipping!
  • Outstanding service!

Product description

Round 12V Premium Roof Ventilator – Complete Vehicle Ventilation Kit with Speed Control

The G&C Round 12V Premium roof ventilator kit provides a complete active ventilation solution for commercial vans, service vehicles, campervans and other vehicles with a suitable 12V electrical system. Its electric roof fan delivers up to 850 m³/h airflow and supports both air intake and extraction.

This Premium package includes a complete electrical connection kit with a three-position reversing switch, PWM speed controller, closable grey interior grille, passive floor vent and the installation accessories required for a suitable vehicle roof installation.

Key Benefits

  • Maximum rated airflow of 850 m³/h.
  • Electric ventilation for suitable 12V DC vehicle systems.
  • Air intake, off and extraction via the included three-position switch.
  • Included PWM controller for stepless fan speed adjustment.
  • Premium closable grey interior grille.
  • Passive round Ø129 mm floor ventilation included.
  • Combined insect and snow filter included.
  • Mounting ring, rubber seal, sealant and fasteners included.
  • Available with black or white roof fan.

Adjustable Air Intake and Extraction

The G&C Round 12V ventilator provides active airflow even when the vehicle is parked. Use the supplied polarity-reversing switch to select intake, off or extraction. The PWM speed controller allows the fan speed to be adjusted to the required ventilation level.

The included passive floor vent can provide an additional air opening when fitted appropriately.

Technical Specifications

  • Brand: G&C Systems
  • Model: Round 12V Premium
  • Operating voltage: 12V DC
  • Fan power: 80 W
  • Calculated nominal current: approximately 6.67 A at 12V
  • Maximum airflow: 850 m³/h
  • Airflow direction: intake and extraction
  • Control switch: three-position reversing switch included
  • Speed control: stepless PWM controller included
  • Nominal fan speed: approximately 2600 RPM
  • Outside cover diameter: approximately 320 mm
  • External installed height: approximately 62 mm
  • Roof cut-out: Ø230 mm; check installation template
  • Interior grille: premium grey closable type
  • Floor vent: passive round Ø129 mm
  • Filter: combined insect and snow filter
  • Colours: black and white
  • Black variant SKU: 5000.300B
  • White variant SKU: 5000.300W

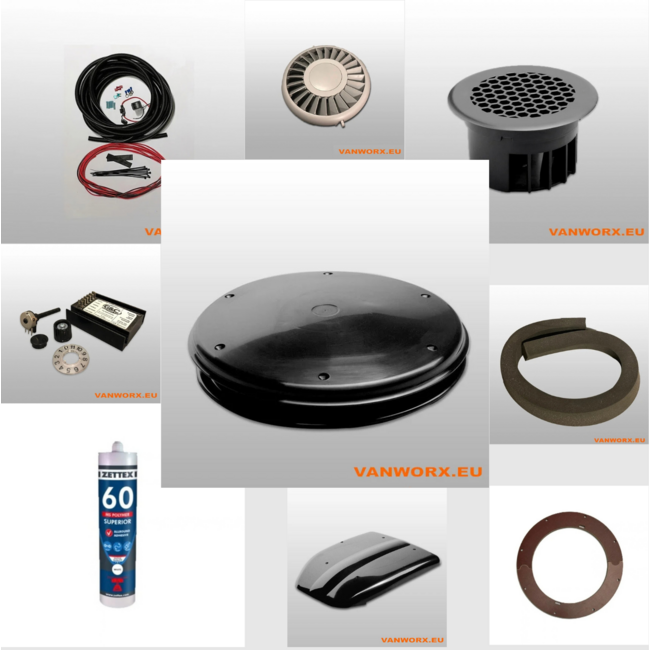

What's Included in the Premium Kit?

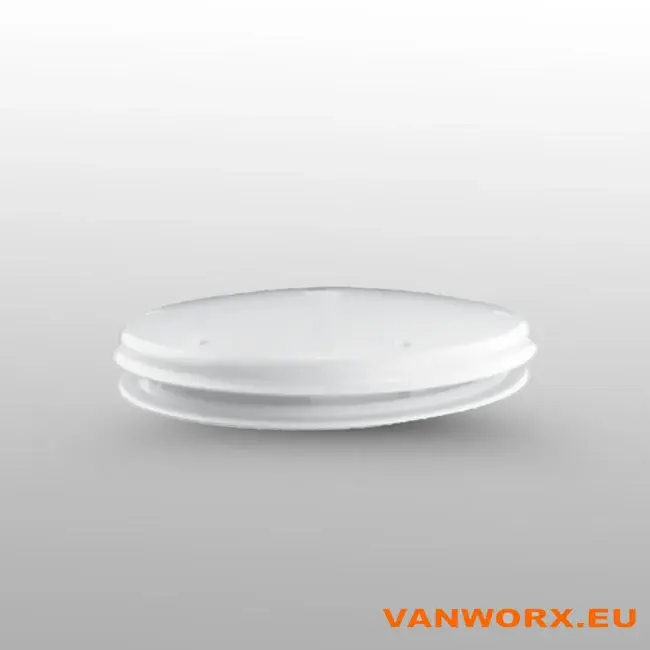

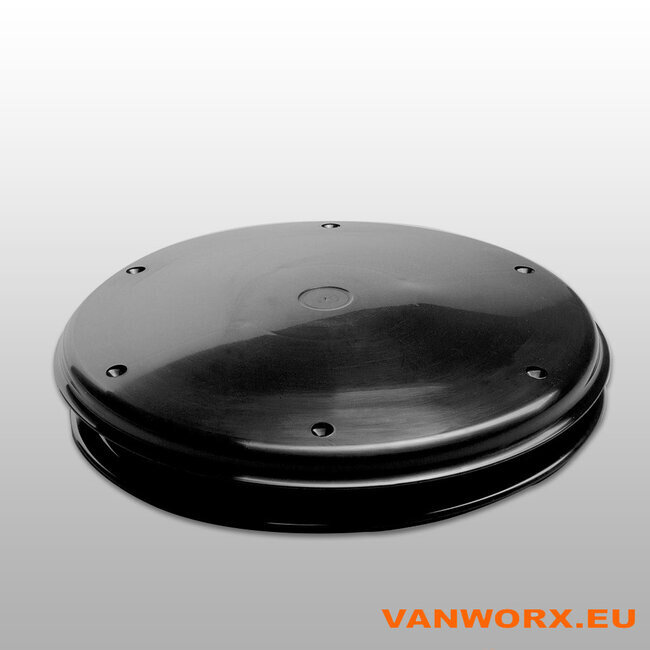

  • 1× G&C Round 12V electric roof ventilator in the selected colour
  • 1× mounting ring with rubber seal
  • 1× combined insect and snow filter

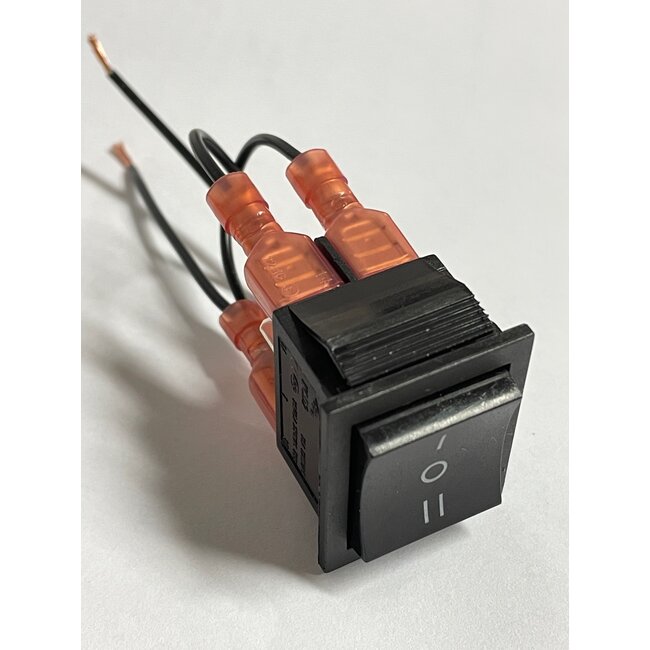

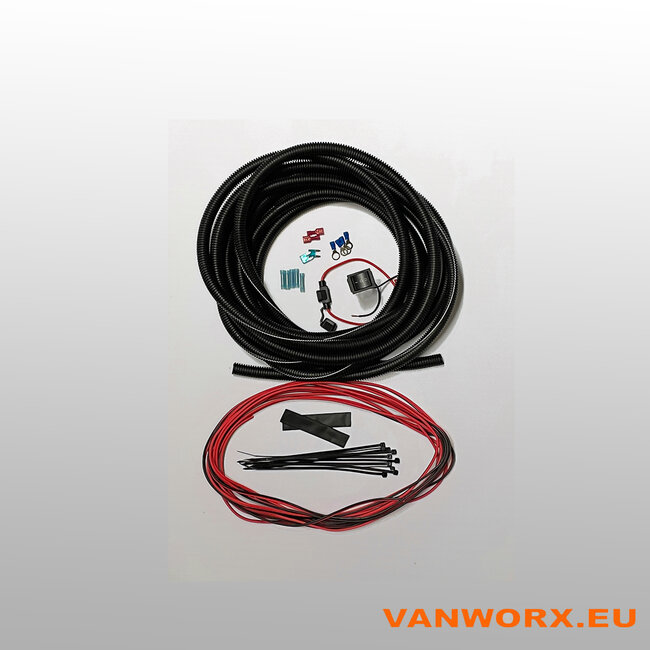

  • 1× electrical connection kit with three-position reversing switch
  • 1× PWM speed controller
  • 1× premium closable grey interior grille

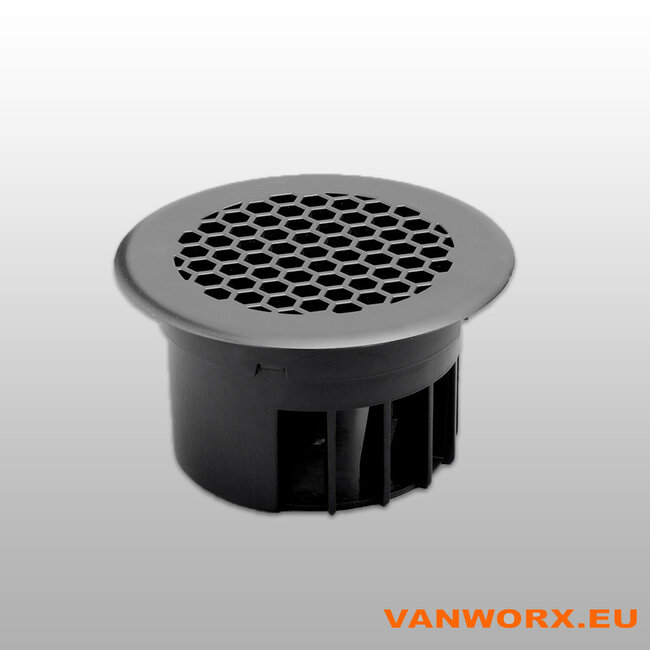

  • 1× passive round floor vent Ø129 mm

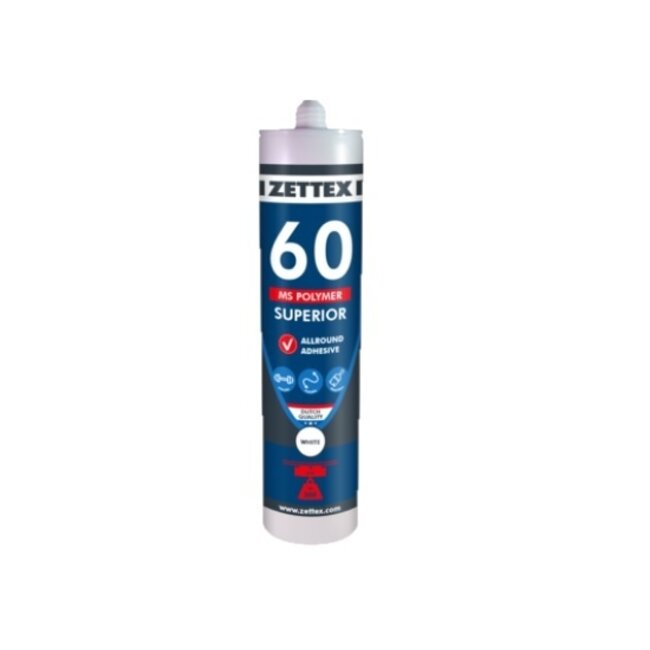

  • 1× cartridge of sealant

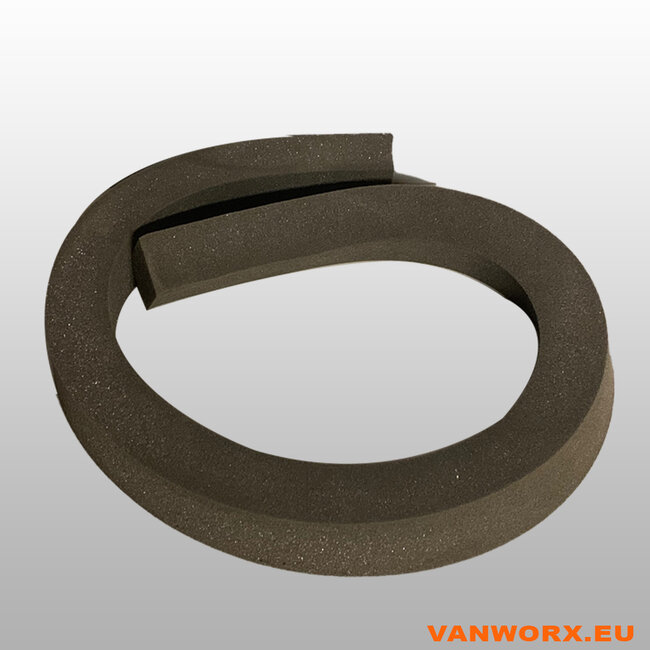

  • 1× soft foam filler for the space between roof and headlining
  • 1× set of spacer rings
  • 1× set of mounting fasteners
  • 1× installation guide
  • 1× drilling and cutting template

Special vehicle roof constructions may require additional fitting components.

Installation in a Vehicle Roof

Before cutting the roof, check the structure, reinforcement, cables and available installation space. The stated roof opening is Ø230 mm. Always follow the supplied template and installation instructions for the final cut-out.

Protect exposed metal edges against corrosion. Fit the mounting ring and rubber seal using the included sealant and mounting hardware as instructed. The spacer rings and soft foam filler help finish the space between the roof and interior headlining.

Install the closable grille, insect/snow filter and passive floor vent in suitable locations. Keep the airflow paths clear of insulation, trim and cargo.

Electrical Connection and Operation

Connect the fan to a properly fused 12V DC circuit. At 80 W, the calculated nominal current is approximately 6.67 A. Actual starting and running currents can differ; select the wiring and fuse according to the installation instructions.

The three-position reversing switch and stepless PWM speed controller are already part of the Premium package. They do not need to be ordered separately.

Suitable Vehicle Applications

  • Commercial vans with 12V electrical systems.
  • Service vehicles and mobile workshops.
  • Campervans and recreational vehicles.
  • Trailers with a suitable 12V power supply.
  • Cargo compartments requiring adjustable intake and extraction.

Frequently Asked Questions

How does Premium differ from BASIC and PLUS?
Premium adds the electrical connection kit, reversing switch, PWM speed controller, floor vent and interior finishing accessories to the roof installation components.

What is the maximum airflow?
850 m³/h.

Can the airflow direction be reversed?
Yes, using the included reversing switch.

Is the speed controller included?
Yes, a stepless PWM controller is supplied.

Is the floor vent included?
Yes, a round passive floor vent of Ø129 mm.

Are sealant and fasteners included?
Yes, both are supplied.

Does the interior grille close?
Yes, the premium grey interior grille is closable.

What size roof cut-out is required?
Ø230 mm, to be checked against the supplied template.

Can this version be connected to 24V?
No, choose the dedicated 24V version.

Order the G&C Round 12V Premium at Vanworx

Choose a complete roof ventilation package with up to 850 m³/h airflow, reversible operation and stepless speed adjustment. The electrical controls, floor vent, interior finishing components, sealant and installation hardware are included.
