The LeMans 24V BASIC roof ventilator is a powerful electric roof fan for trucks, commercial vans, service vehicles and other vehicles equipped with a 24V electrical system. It helps remove warm, humid and stale air from cargo areas and mobile workspaces.
Thanks to its electric motor, the LeMans operates independently of airflow generated while driving. It can also operate when the vehicle is stationary, provided a suitable 24V power supply is available.
The BASIC version includes a mounting ring and rubber seal as standard. Additional installation and electrical accessories can be selected separately according to your vehicle and installation requirements.

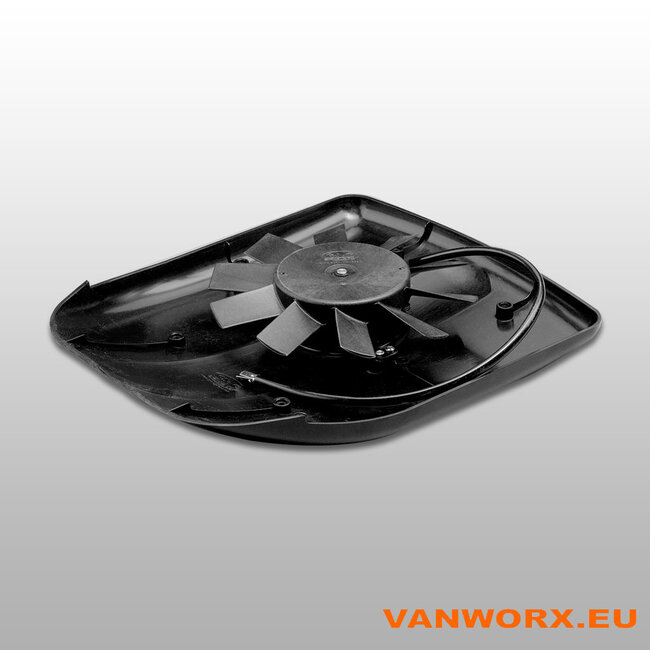

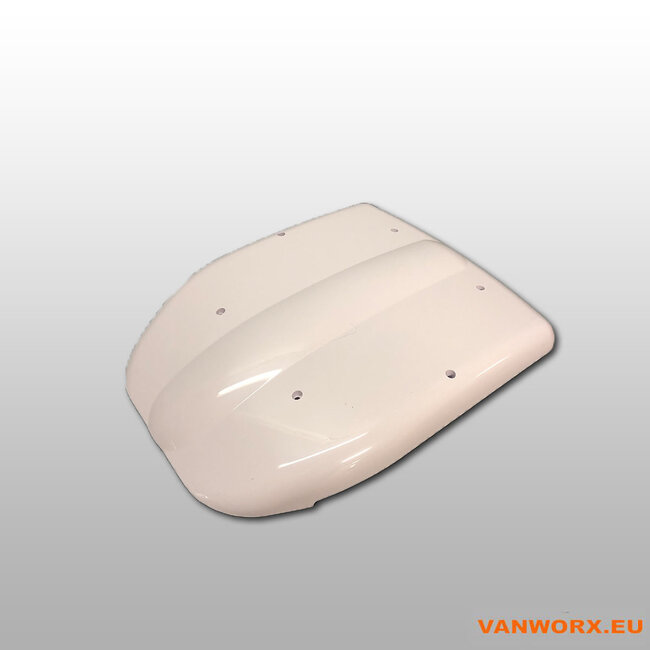

The standard package contains three components:
Important: The mounting ring and rubber seal are included as standard. MS polymer sealant, mounting hardware, switch, interior grille, insect/snow filter and speed controller are not included with the BASIC version.
Looking for a more comprehensive installation package with mounting materials and interior finishing components? Consider the LeMans 24V PLUS Roof Ventilation Kit.
Always verify the exact roof opening and installation instructions for your selected mounting configuration before cutting the vehicle roof.

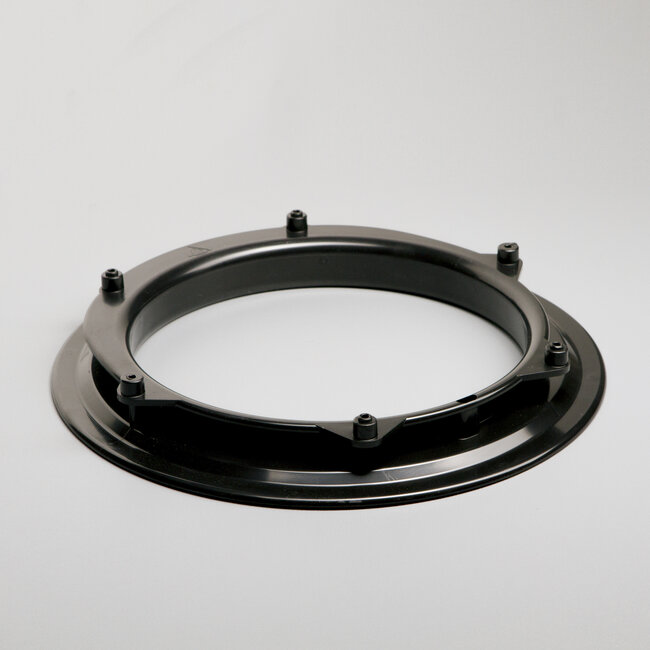

The LeMans 24V BASIC includes a mounting ring and rubber seal. A complete installation also requires suitable mounting fasteners, any additional sealing materials needed and an appropriate electrical connection.
Before installation, check the roof shape, thickness and available mounting space. Vehicles with ribbed or heavily curved roofs may require an additional vehicle-specific roof adapter.
Use the supplied rubber seal according to the installation instructions. Depending on the roof construction and installation method, additional MS polymer sealant may be required to achieve a reliable watertight seal.
MS polymer sealant and mounting hardware are not included with the BASIC version.
The roof ventilator operates on 24V DC. A suitable and correctly fused electrical connection is required for safe operation.
With an appropriate 3-position switch and wiring, the ventilator can be controlled for air intake, off and air extraction.
These accessories are optional and are not included in the standard package. The mounting ring and rubber seal are included.
The electric roof ventilator with a mounting ring and rubber seal included. Ideal for customers who want to choose their own additional mounting and electrical components or already have them.
A more comprehensive kit including MS polymer sealant, mounting hardware, a grey interior ventilation grille and an insect/snow filter.
Important: Hazardous fumes, toxic substances and explosive atmospheres require purpose-designed and approved extraction equipment. This roof ventilator is not a substitute for specialised safety ventilation equipment.
Yes. The roof ventilator comes with a mounting ring and rubber seal as standard.
No. These additional installation materials are not included with the BASIC version. They are supplied as standard in the LeMans 24V PLUS kit.
Yes. The electric motor allows operation while stationary, provided a suitable 24V power supply is available.
Yes. The airflow direction can be reversed with suitable electrical wiring and controls.
The technical specifications state 230 / 245 mm, depending on the mounting configuration. Always check the applicable installation instructions before cutting the roof.
No. This is the 24V version. A separate LeMans 12V BASIC model is available for vehicles with a 12V electrical system.
The LeMans 24V BASIC offers powerful electric roof ventilation with an included mounting ring and rubber seal. Additional mounting and electrical accessories can be selected according to your vehicle and installation requirements.

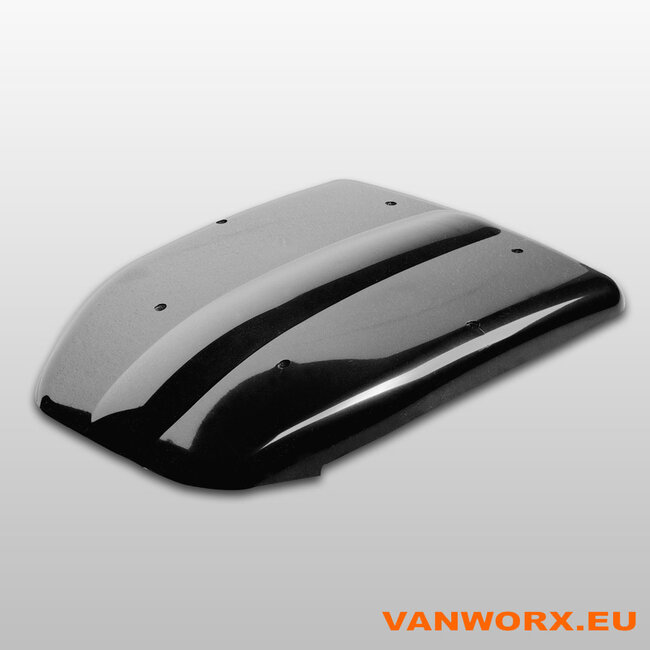

Select your preferred colour and order easily from Vanworx.
Questions about installation, electrical connections or choosing the correct version? Contact Vanworx for personal advice.
