Round 12V BASIC Roof Ventilator – Electric Ventilation for Commercial Vehicles

The G&C Round 12V BASIC roof ventilator is a powerful electric roof fan for commercial vans, delivery vehicles, service vehicles and campervans equipped with a 12V electrical system. Its classic round design and high airflow make it suitable for active ventilation of cargo areas and mobile workspaces.

The electric motor operates independently of airflow generated while driving. It can also run when the vehicle is stationary, provided a suitable 12V power supply is available.

The BASIC version includes a mounting ring and rubber seal. Additional installation and electrical accessories can be selected separately to suit your vehicle.

Benefits of the Round 12V BASIC

• Powerful 12V ventilation: Designed for vehicles with a 12V DC electrical system.
• High airflow: Up to 850 m³/h according to technical specifications.
• Air intake and extraction: Reversible airflow with suitable electrical wiring and controls.
• Ventilation while stationary: Works independently of driving wind.
• Compact round design: Approximately 320 mm in diameter and 62 mm high.
• Mounting ring included: For installing the roof ventilator.
• Rubber seal included: For sealing the designated mounting surfaces.
• Two colour options: Black and white.

What Is Included?

• 1 x G&C Round 12V electric roof ventilator – in the selected colour

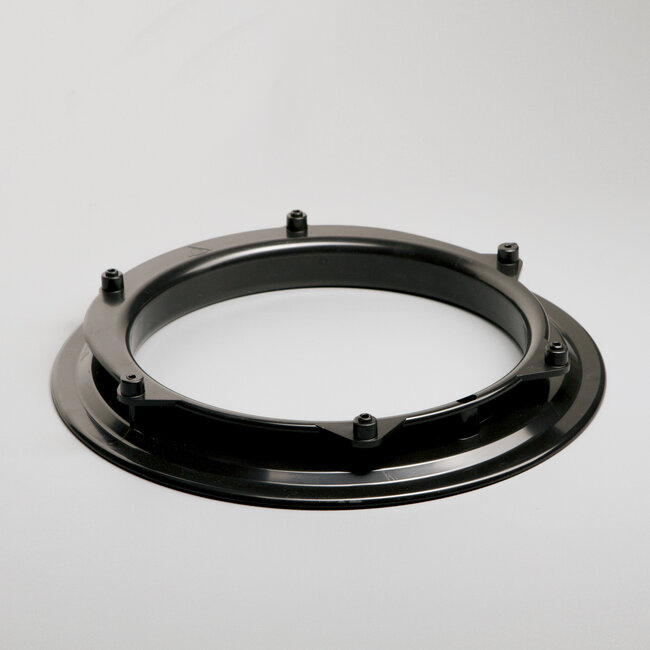

• 1 x mounting ring – for securing the ventilator
• 1 x rubber seal – for sealing the mounting surfaces

Important: MS polymer sealant, additional mounting fasteners, switch, interior grille, insect/snow filter and speed controller are not included with the BASIC version.

Technical Specifications

• Brand: G&C
• Type: Round BASIC electric roof ventilator
• Operating voltage: 12 V DC
• Power: 80 W
• Airflow: 850 m³/h
• Nominal speed: 2600 RPM
• Noise level: 52 dB(A) according to technical specifications
• Function: Air intake and extraction with suitable controls

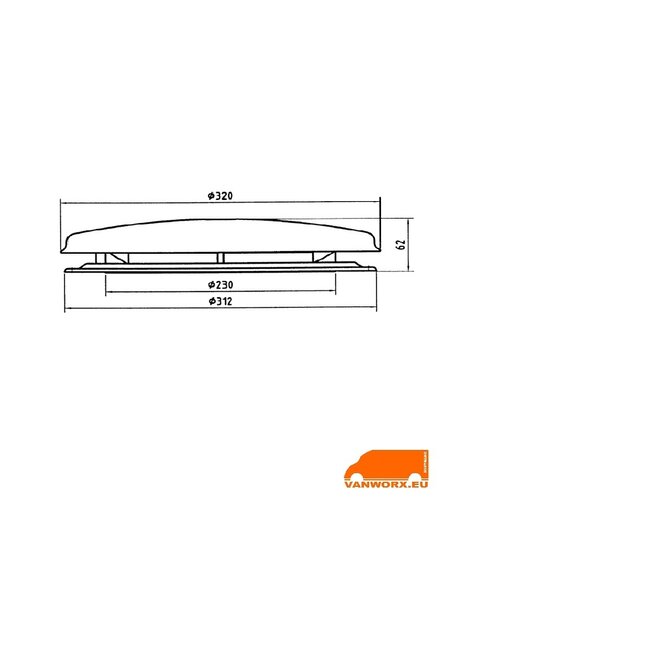

• Roof opening / cut-out size: 230 / 245 mm, depending on installation configuration
• Cover diameter: Approximately 320 mm
• External height: Approximately 62 mm
• Roof ring material: ABS plastic
• Cover material: PA6 plastic
• Colours: Black and white
• Black version part number: 02-0200-ZW
• White version part number: 02-0200

Always check the exact roof opening against the applicable installation instructions before cutting the vehicle roof.

Installation and Electrical Connection

The Round 12V BASIC includes a mounting ring and rubber seal. Completing the installation requires suitable additional fasteners, any necessary sealing materials and an appropriate electrical connection.

Vehicles with ribbed or curved roofs may require an additional roof adapter.

Electrical Controls

The ventilator operates on 12V DC and requires a suitable, correctly fused electrical connection.

A compatible 3-position switch allows the electrical polarity to be reversed, enabling the ventilator to supply or extract air. The conventional G&C motor supports reverse polarity operation.

Optional Accessories

• Connection kit with 3-position switch: For electrical connection and airflow direction control.
• Speed controller: To adjust the fan speed.
• MS polymer sealant: For additional sealing according to installation instructions.
• Mounting hardware: For securing the ventilator to the roof.
• Interior ventilation grille: For a neat interior finish.
• Insect and snow filter: Helps reduce the entry of insects and snow.
• Stainless steel floor ventilation grille: For additional fresh air intake.

These optional accessories are not included with the BASIC version.

Round BASIC vs PLUS vs Premium

Round 12V BASIC

Roof ventilator with mounting ring and rubber seal. Ideal for customers who prefer to choose their own additional accessories.

Round 12V PLUS

A more comprehensive kit with interior grille, filter, MS polymer sealant and mounting hardware.

Round 12V Premium

An extended installation package including electrical connection materials, floor ventilation and speed control.

Applications

• Commercial vans: Active ventilation of cargo and work areas.
• Service vehicles: Helps extract warm and humid air.
• Campervans: Additional electric roof ventilation.
• Goods and tool transport: Helps reduce moisture build-up and unwanted odours.

Hazardous fumes, toxic substances and explosive atmospheres require purpose-designed and approved extraction equipment. This ventilator does not replace specialised safety ventilation.

Frequently Asked Questions

Are the mounting ring and rubber seal included?

Yes. Both are supplied as standard.

Are sealant and mounting fasteners included?

No. Additional installation materials can be ordered separately.

Can the ventilator supply and extract air?

Yes. With suitable wiring and a 3-position switch, the airflow direction can be reversed.

Can the ventilator run while the vehicle is stationary?

Yes, provided a suitable 12V power supply is available.

What roof opening is required?

Technical specifications indicate 230 / 245 mm, depending on the installation configuration. Always verify the required dimensions before cutting.

Order the Round 12V BASIC Roof Ventilator from Vanworx

The G&C Round 12V BASIC offers powerful electric roof ventilation with a mounting ring and rubber seal included. Select additional installation and electrical accessories to suit your vehicle.

Choose black or white and order easily from Vanworx. Contact us for personal installation advice.
