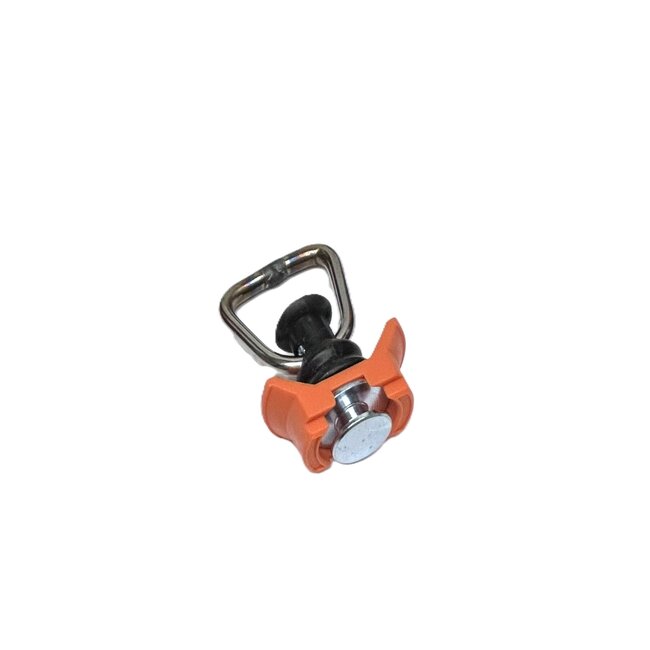

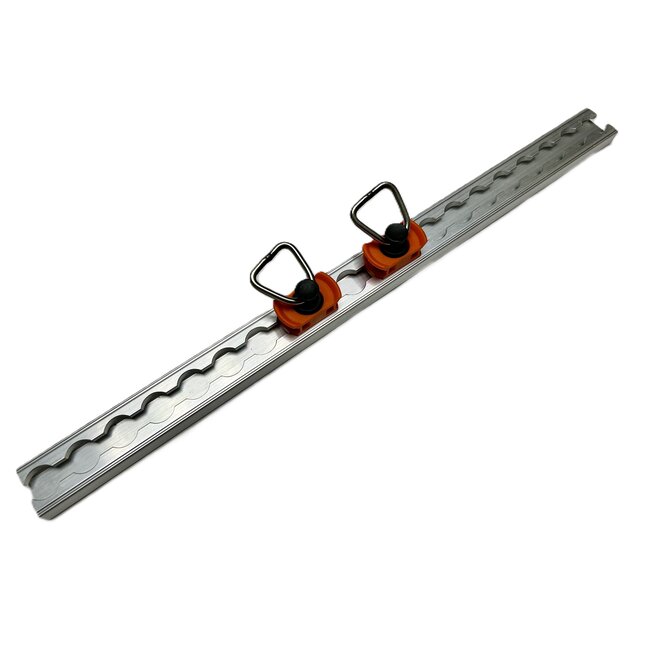

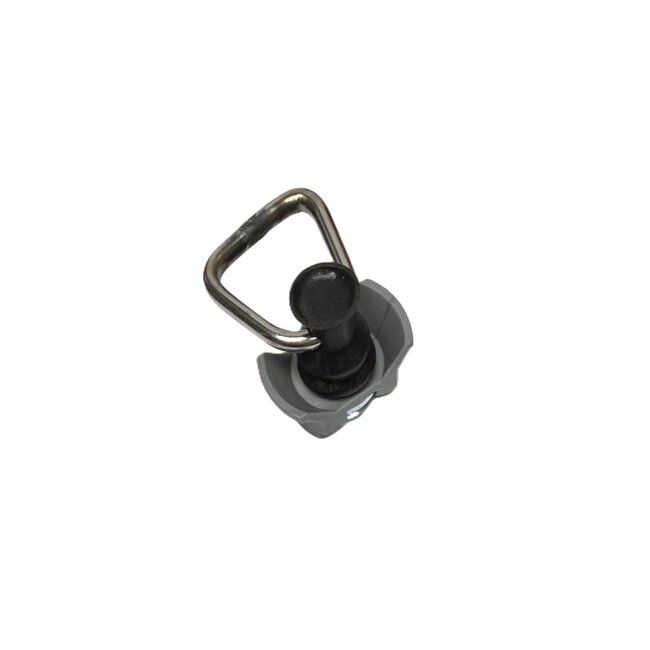

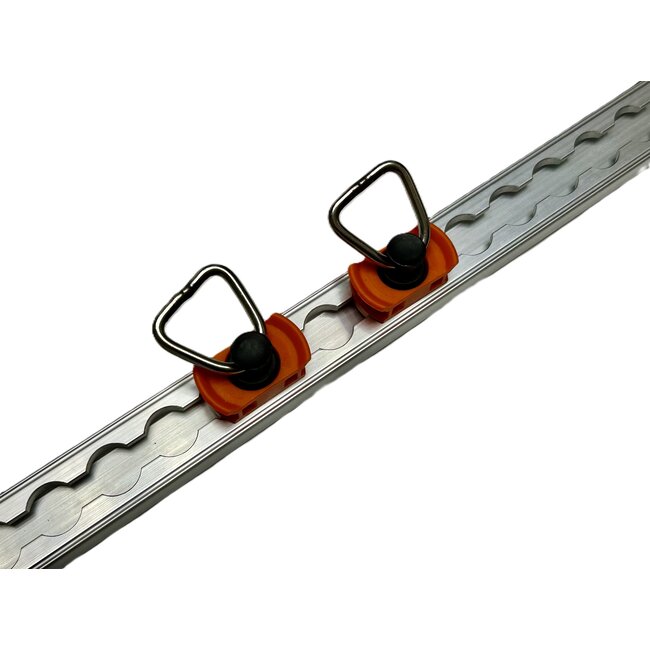

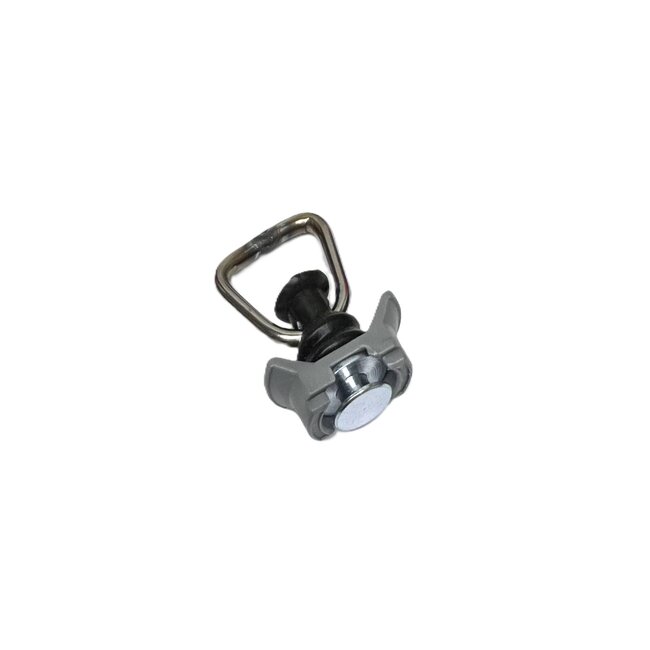

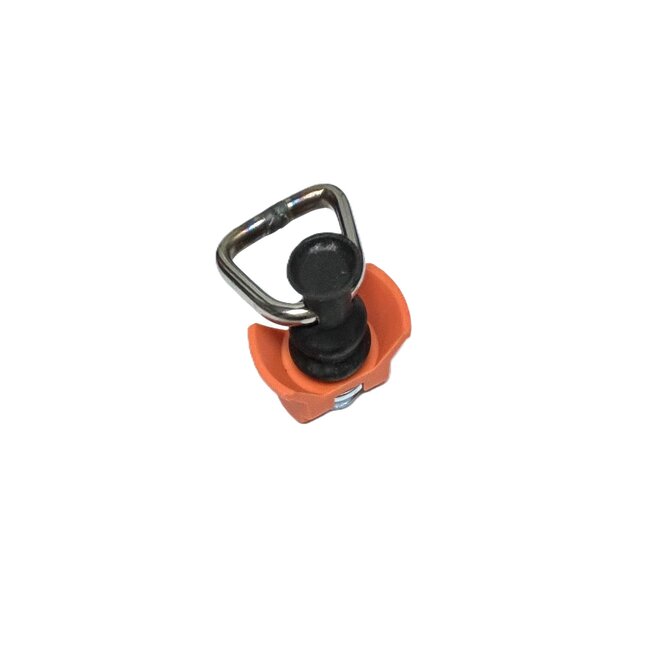

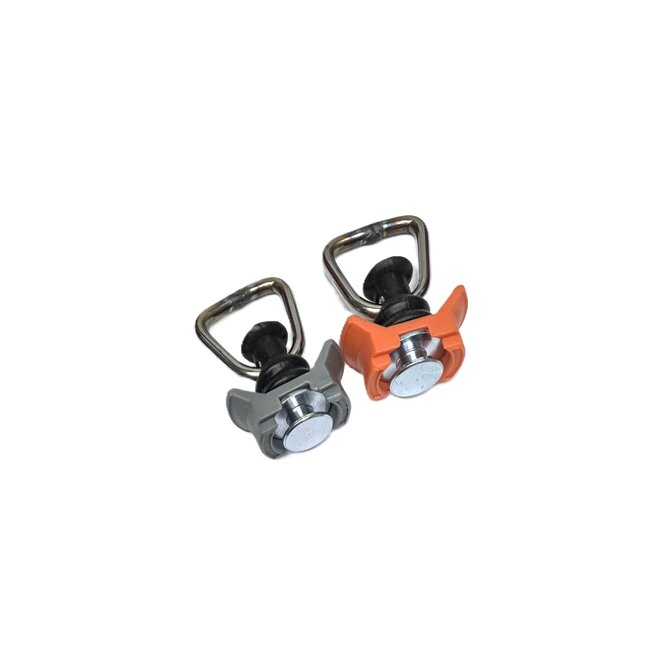

Quick and Secure Attachment with the Stud Fitting

Easily and quickly create a reliable attachment point in your lashing rails with this single stud fitting. Manufactured from durable galvanized steel with a robust plastic holder, this fitting offers a versatile solution for various applications. The large ring with a diameter of 25 mm is suitable for a wide range of hooks, snap hooks, and straps.

Easy Operation:

The spring-loaded plunger style mechanism is designed for ease of use:

1. Place your thumb in the ring.
2. Push the ring down while lifting the clip with your index and middle fingers.
3. Place the lower disc into the desired round opening of the rail.
4. Slide the fitting in either direction until it is halfway between two openings.
5. Release the clip; it will now lock securely into the round slots on both sides of the stud.

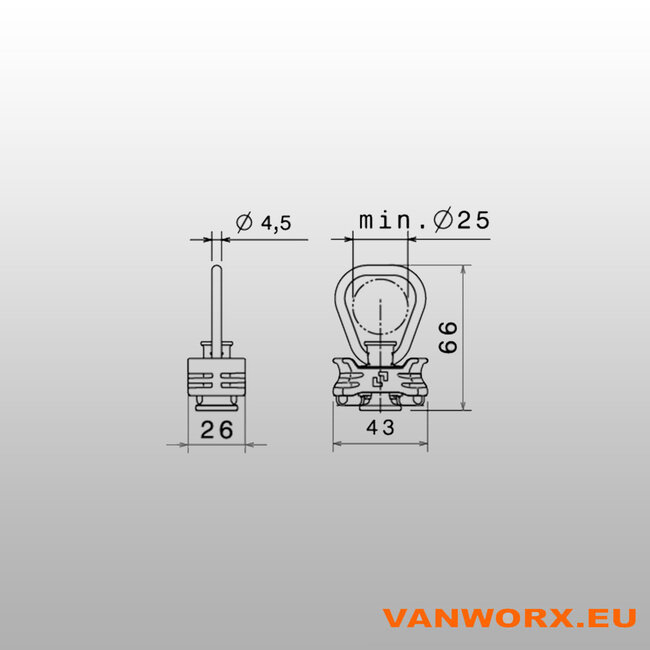

Key Features:

• Material: Galvanized steel with plastic holder
• Ring Opening: ø 25 mm
• Mechanism: Spring-loaded plunger style
• Breaking Strength: 1814 kg

Benefits:

• Quick and easy creation of a secure attachment point.
• Suitable for a wide range of accessories thanks to the large ring.
• Durable construction for a long service life.
• Intuitive operation.

Please contact us for larger quantities.
This can be done by phone: +31654674303 or by mail: [email protected]
