Eberspächer ADT-452 PLUS 12V electric roof ventilator – 629 m³/h, reversible airflow
€194,81 €161,00
Add to cart
Eberspächer ADT-452 PLUS 12V electric roof ventilator – 629 m³/h, reversible airflow

Eberspächer ADT-452 PLUS 12V electric roof ventilator – 629 m³/h, reversible airflow

€194,81 €161,00 Incl. tax Excl. tax
In stock (5)

Eberspächer ADT-452 PLUS 12V roof ventilator with 629 m³/h airflow. Reversible for fresh-air intake and extraction. Compatible with a suitable G&C speed controller. Includes grey PVC interior grille and polymer sealant. Read more.

Make a choice
A.D.T. 452
830012140415
In stock
830012140415
€194,81 €161,00
  • Ordered before 3pm on workdays = shipped today!
  • Global Shipping!
  • Outstanding service!

Product description

ADT-452 PLUS 12V Roof Ventilator – 629 m³/h, Reversible Airflow

Powerful and versatile roof ventilation for commercial vans, service vehicles, trailers and campervans. The Eberspächer ADT-452 PLUS 12V is an electric roof ventilator designed to provide both fresh-air intake and extraction of warm, humid or stale air from the vehicle interior.

With an airflow rating of 629 m³/h according to the Eberspächer catalogue, the ADT-452 provides powerful active vehicle ventilation. Its reversible rotation enables the direction of airflow to be changed between intake and extraction.

The ventilator can also be combined with a suitable G&C speed controller to adjust fan speed and airflow according to your requirements.

Why choose the ADT-452 PLUS?
Powerful 12V roof ventilation rated at 629 m³/h, reversible airflow and optional speed control. Supplied with a grey PVC interior grille and polymer sealant for installation and finishing.

Key benefits

  • 629 m³/h airflow: powerful ventilation according to the Eberspächer manufacturer's catalogue.
  • Air intake and extraction: two operating directions with suitable polarity-reversing wiring.
  • Adjustable fan speed: compatible with an appropriate G&C speed controller.
  • Electric 12V operation: can also operate while parked when power is available.
  • Compact roof design: dimensions of 320 × 360 × 65 mm.
  • Weather-resistant outer cover: developed for vehicle installation.
  • PLUS package: includes grey PVC interior grille, grille mounting fittings and polymer sealant.
  • Versatile applications: suitable for commercial vans, campervans, service vehicles and trailers with a compatible 12V system.

What's included in the PLUS package?

  • 1× Eberspächer ADT-452 electric roof ventilator, 12V

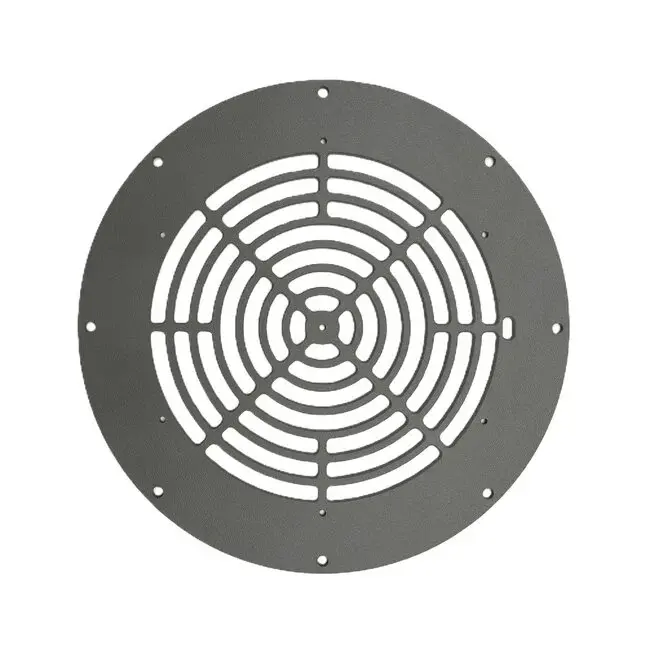

  • 1× Custom grey PVC interior grille
  • Associated mounting fittings for the interior grille

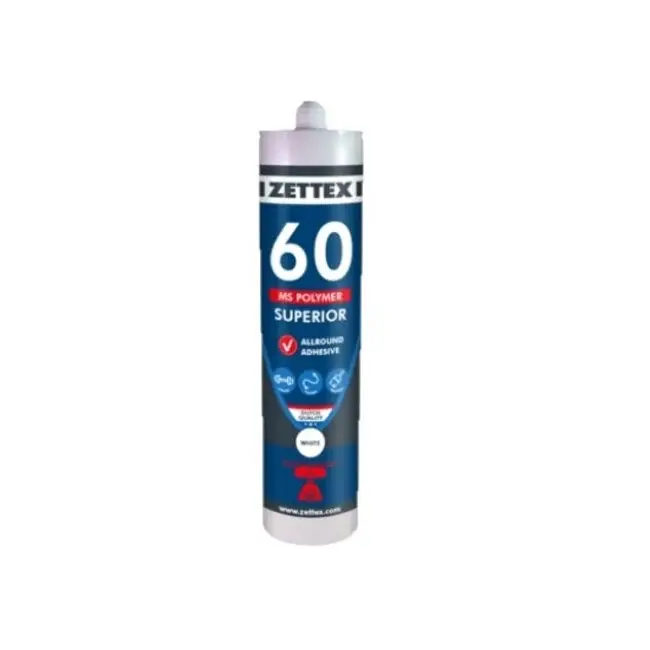

  • 1× Polymer sealant for installation and sealing

Please note: the G&C speed controller, polarity-reversing switch, electrical connection materials and any vehicle-specific roof mounting adapter are not listed as standard components of this PLUS package.

Technical specifications

  • Brand: Eberspächer
  • Model: ADT-452 PLUS 12V
  • Manufacturer ventilator part number: 830012140415
  • Supply voltage: 12V DC
  • Airflow: 629 m³/h according to Eberspächer
  • Electrical power consumption: 72 W according to Eberspächer

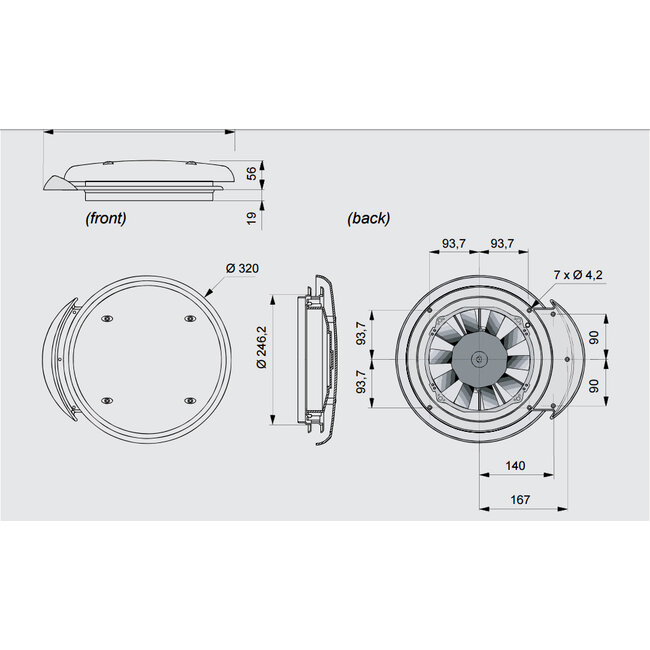

  • Dimensions (L × W × H): 320 × 360 × 65 mm
  • Overall height: 65 mm
  • Ventilator weight: approximately 1.8 kg
  • Airflow direction: intake and extraction
  • Direction switching: with suitable polarity-reversing wiring
  • Speed control: compatible with a suitable G&C controller
  • Outer cover material: weather-resistant plastic
  • Interior finish: grey PVC grille
  • Installation location: vehicle roof

Two operating directions: intake and extraction

Air intake: the roof ventilator actively draws outdoor air into the vehicle, providing additional fresh-air supply when required.

Air extraction: the roof ventilator removes warm, humid and stale air from the vehicle interior or load compartment.

Airflow direction can be reversed using suitable electrical switching. A compatible G&C speed controller enables adjustment of fan speed. Always check the wiring instructions and electrical ratings of the selected control components.

Installation on the vehicle roof

The ADT-452 PLUS is installed in a suitable roof opening. Check the exact cut-out dimensions and installation requirements before modifying the vehicle roof.

  1. Choose a suitable mounting position on the vehicle roof.
  2. Inspect the roof structure for reinforcements, wiring and obstacles.
  3. Mark the required opening according to the installation instructions.
  4. Prepare the roof opening and protect exposed metal edges against corrosion.
  5. Fit and seal the roof ventilator according to the installation requirements.
  6. Finish the interior opening with the supplied grey PVC grille.
  7. Connect the ventilator to a correctly protected 12V electrical circuit.
  8. Install a compatible G&C speed controller and reversing switch if required.
  9. Check airflow, both rotation directions and sealing.

Installation tip: ribbed or profiled vehicle roofs may require a suitable mounting adapter. Switch the ventilator off before changing its rotation direction.

Vehicle applications

The ADT-452 PLUS is suitable for professional ventilation in commercial vans, service vehicles, campervans, trailers and other compatible vehicles equipped with a 12V electrical system.

For effective air circulation, the roof ventilator can be combined with a suitable floor or side vent. When transporting hazardous goods, the complete ventilation system must comply with applicable regulations.

Frequently asked questions

What is the airflow capacity of the ADT-452?
According to the Eberspächer catalogue, the airflow rating is 629 m³/h.

Can this roof ventilator provide both air intake and extraction?
Yes. Its rotation can be reversed using suitable electrical switching.

Can I use a G&C speed controller?
Yes, provided the selected controller is compatible with the 12V motor and its electrical load.

Will the ventilator work while the vehicle is parked?
Yes, as long as a suitable 12V power supply is available.

Are the interior grille and polymer sealant included?
Yes. Both are included in the PLUS package.

How tall is the ventilator?
Eberspächer specifies an overall height of 65 mm for this version.

Order the Eberspächer ADT-452 PLUS 12V from Vanworx

Choose powerful electric roof ventilation with 629 m³/h airflow, reversible operation and optional G&C speed control. Supplied with a grey PVC interior grille and polymer sealant.

Specifications

Article number
830012140415
Do you have any questions about this product? Email or call us!
contact@vanworx .eu / +31654674303
Do you have any questions about this product? Email or call us!
contact@vanworx .eu / +31654674303
