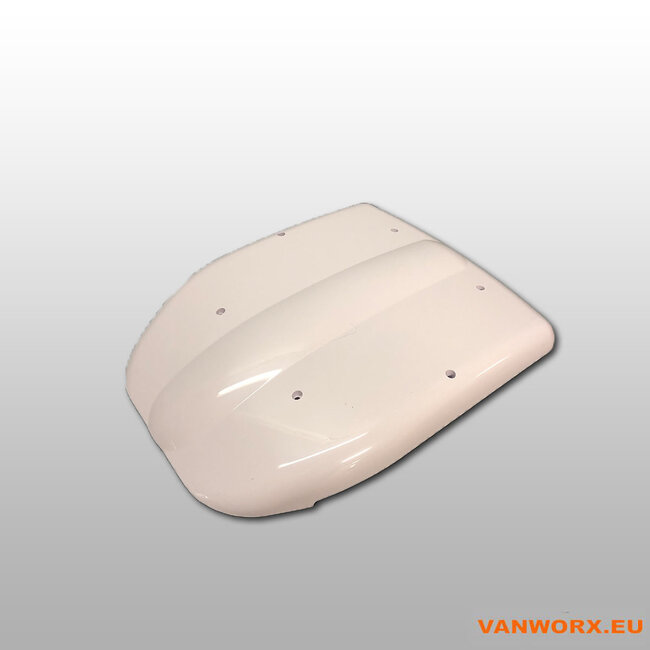

Complete electric roof ventilation kit for the Renault Master 4 from 2024 onwards, featuring a vehicle-specific roof adapter developed and manufactured by Vanworx.eu. This kit combines powerful electric ventilation with a tailored mounting solution for the vehicle roof.

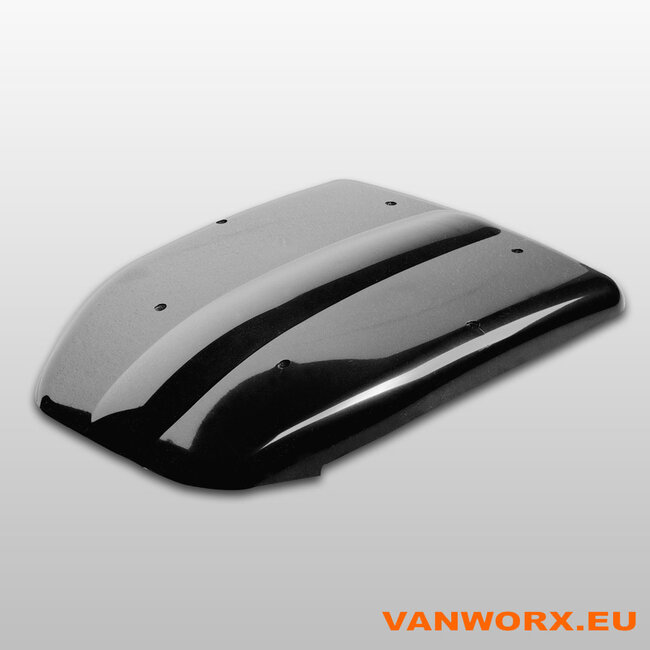

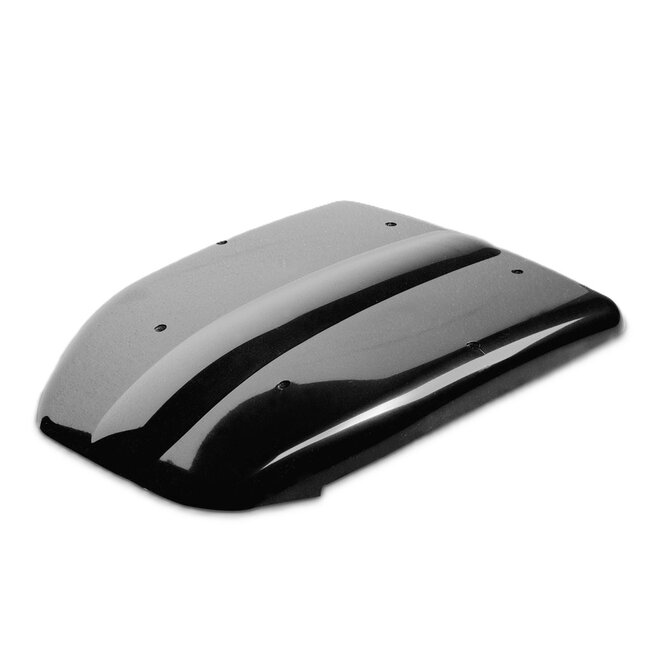

The G&C LeMans 12V roof ventilator provides a rated airflow of 850 m³/h with a power consumption of 80 watts. As the fan is electrically powered, it operates independently of vehicle movement and can also run while parked when a suitable 12V power supply is available.

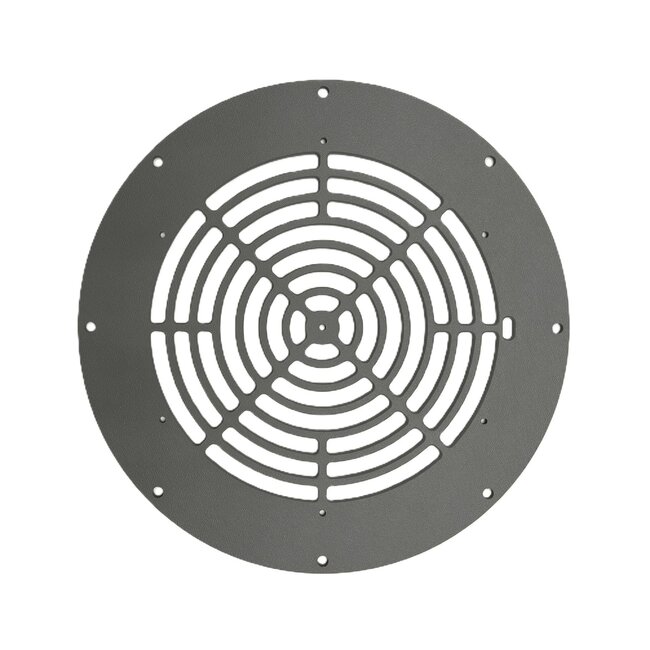

Available with a black or white roof ventilator, the kit includes a Vanworx roof adapter, Vanworx ventilation grille, MS polymer sealant, cutting template and installation instructions.
The Renault Master 4 has its own roof profile and construction. Installing a roof ventilator requires consideration of the roof shape, reinforcing sections and available mounting space.

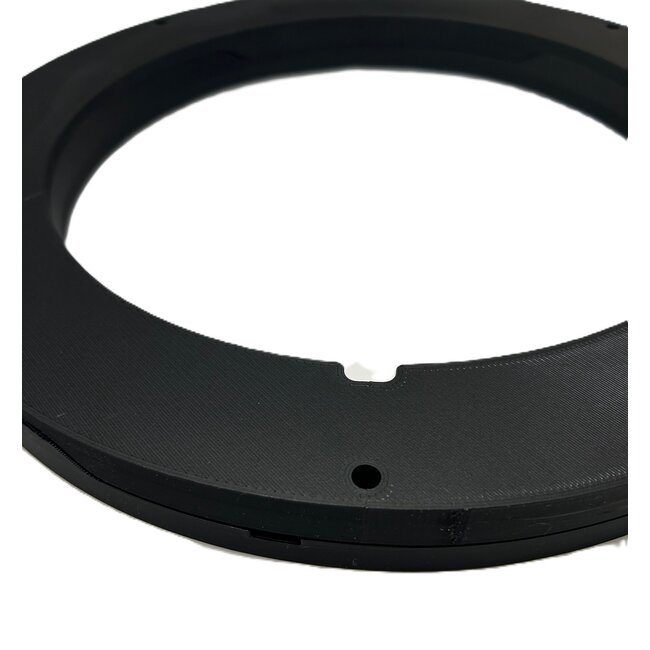

For this application, Vanworx.eu has developed and manufactured a dedicated vehicle-specific roof adapter. The adapter provides a tailored mounting interface between the LeMans 12V ventilator and the Renault Master 4 roof.
The supplied roof adapter was specifically developed and manufactured by Vanworx.eu for the Renault Master 4. It is a vehicle-specific component rather than a universal mounting adapter.
The LeMans 12V roof ventilator has a rated power consumption of 80 watts. At a nominal voltage of 12V, this corresponds to a calculated current draw of approximately 6.7 amperes.
Actual current draw may vary depending on operating conditions and electrical control.
At a constant power consumption of 80 W, theoretical energy usage is:
These figures are calculated using a constant 80 W load. Actual consumption may differ when using a compatible speed controller.
The conventional LeMans 12V ventilator can operate in two directions when connected through suitable polarity-reversing controls:
For effective air exchange, an additional suitable air inlet or outlet elsewhere in the vehicle is important.
This kit has been assembled by Vanworx.eu specifically for the Renault Master 4.
The Vanworx roof adapter, ventilation grille, MS polymer sealant, cutting template and installation instructions are already included and do not need to be purchased separately.
The kit includes a vehicle-specific roof adapter, cutting template and installation instructions to support accurate fitting.
Always use the supplied cutting template and installation instructions. Check the roof structure and existing wiring before cutting. Connect the LeMans 12V ventilator only to a suitable, correctly protected 12V DC power supply.
Depending on the required controls and vehicle electrical system, additional accessories may be useful:
Please note: the Vanworx roof adapter, MS polymer sealant, ventilation grille, cutting template and installation instructions are already included.
Which vehicle is this kit designed for?
The Renault Master 4 from 2024 onwards, provided the roof configuration is suitable.
Who developed the roof adapter?
The vehicle-specific roof adapter was developed and manufactured by Vanworx.eu.
How much electricity does the ventilator use?
Rated power consumption is 80 W, equivalent to a calculated current draw of approximately 6.7 A at 12V.
How much energy does it use in eight hours?
At a constant 80 W, theoretical consumption is approximately 640 Wh or 0.64 kWh.
What is the airflow capacity?
The rated airflow is 850 m³/h. Actual airflow depends on the installation and operating conditions.
Can the fan run while the vehicle is parked?
Yes, when a suitable 12V power supply is available.
Can the fan draw air in and extract it?
Yes. The conventional LeMans 12V supports both directions with suitable polarity-reversing controls.

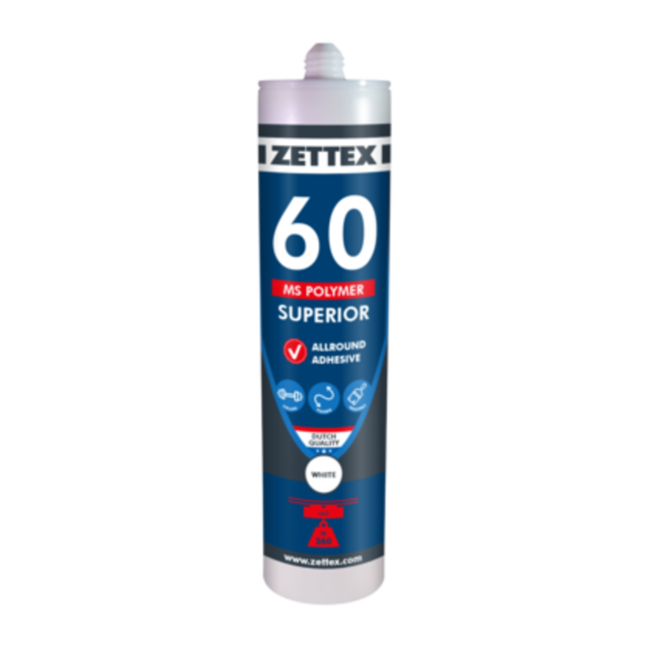

Is MS polymer sealant included?
Yes, it is supplied as standard.
Is the Vanworx ventilation grille included?
Yes, the grille is included.
Are the cutting template and installation instructions included?
Yes, both are supplied with the kit.
Which colours are available?
Black (5000.114B) and white (5000.114W).
Is a speed controller included?
A speed controller is not among the six confirmed kit components. Check the final package contents before ordering one separately.
Choose powerful electric roof ventilation with a rated airflow of 850 m³/h and 80 W power consumption. This complete Renault Master 4 kit includes a roof adapter developed and manufactured by Vanworx.eu, a Vanworx ventilation grille, MS polymer sealant, a cutting template and installation instructions. Available with a black or white LeMans 12V ventilator. Order your preferred version from Vanworx.eu.
