Turbo 2 Mechanical Roof Ventilator – Wind-Powered Vehicle Ventilation Without Electricity

The G&C Turbo 2 mechanical roof ventilator is a wind-driven extraction fan designed for commercial vans, campervans, service vehicles, trailers and enclosed vehicle cargo areas. Airflow generated while driving causes the ventilator to rotate, helping remove warm, humid and stale air from the vehicle.

The Turbo 2 operates without an electrical connection. No battery, wiring or switch is required. It can also operate while the vehicle is stationary when sufficient natural wind is available.

With an external mounting height of just 68 mm, the Turbo 2 features a relatively low-profile design. It is available in black and white and comes with a closable interior grille for a neat finish.

Benefits of the Turbo 2 Roof Ventilator

• Wind-powered: No electricity or vehicle battery power required.
• Mechanical air extraction: Helps remove warm and humid air.
• Low-profile design: Only 68 mm external height.
• Large ventilator cover: 319 mm outside diameter.
• Closable interior grille included: For interior finishing and controlling the opening.
• Durable ABS plastic: Suitable for vehicle roof applications.
• Two ball bearings: Support smooth rotor movement.
• Standard mounting kit: Suitable for roof thicknesses from 1 to 21 mm.
• Two colours: Black and white.

What Is Included?

• 1 x Turbo 2 mechanical roof ventilator – black or white.

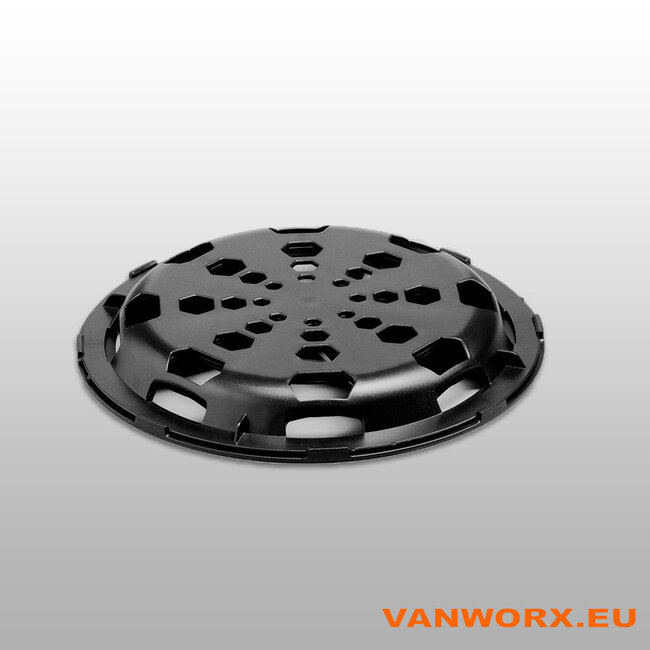

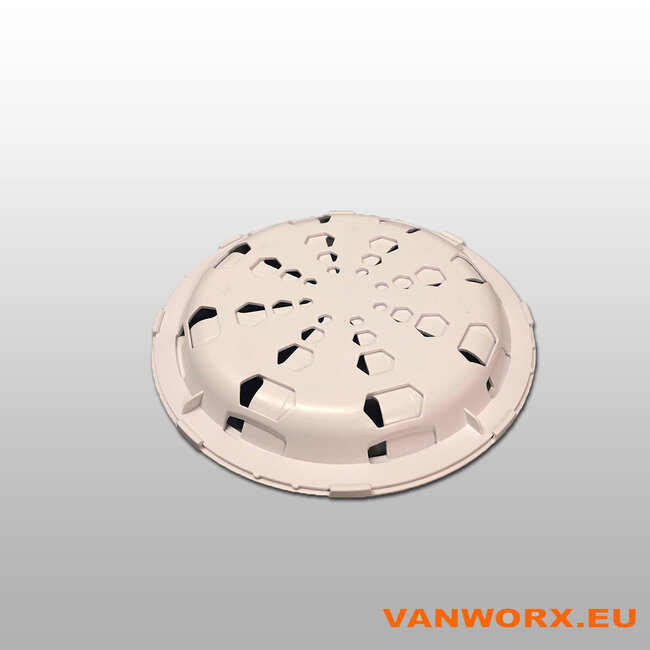

• 1 x closable interior grille and shutter – for interior finishing.
• Standard mounting kit – for 1 to 21 mm roof thickness.
• Installation instructions – for the recommended fitting procedure.

Important: The interior grille and shutter are already included. Suitable sealing compound, any required roof adapter and additional floor ventilation can be purchased separately.

Turbo 2 Technical Specifications

• Brand: G&C Systems
• Model: Turbo 2 / Turbo II
• Drive: Mechanical, wind-powered
• Function: Air extraction
• Electrical connection: Not required

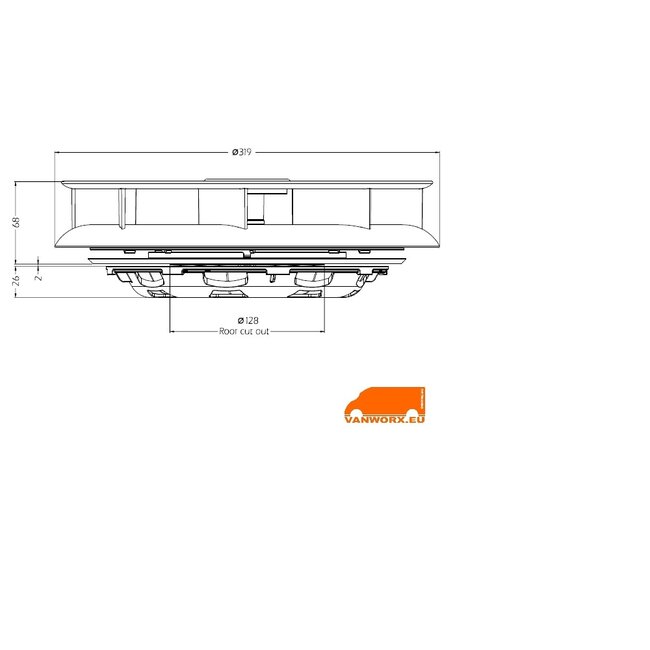

• Ventilator diameter: 319 mm
• Roof opening: Ø128 mm
• External mounting height: 68 mm
• Installation depth: 26 mm
• Suitable roof thickness: 1 to 21 mm with the standard mounting kit
• Material: ABS plastic
• Bearings: Two ball bearings
• Weight: Approximately 1.2 kg
• Interior grille: Closable, included
• Colours: Black and white
• Black version part number: 02-7100
• White version part number: 02-7000

Always check the available roof space and installation instructions before cutting the vehicle roof. Actual airflow depends on wind conditions, installation and available replacement air.

How Does the Turbo 2 Work?

Air moving around the roof ventilator causes the rotating cover to turn, extracting air from the vehicle interior.

The Turbo 2 does not contain an electric motor. Its extraction performance therefore varies with driving wind and natural wind. Constant extraction cannot be guaranteed in completely still conditions.

The included interior shutter allows the ventilation opening to be opened or closed manually.

Suitable Vehicle Applications

• Commercial vans: Additional ventilation for enclosed cargo areas.
• Service vehicles: Air extraction while driving or in sufficient natural wind.
• Campervans: Supplementary ventilation without electrical power.
• Enclosed trailers: Air exchange in cargo compartments.
• Animal transport vehicles: A possible component of a properly designed ventilation system, not a replacement for adequate temperature and climate control.

Roof Installation

The Turbo 2 requires a Ø128 mm roof opening. The standard mounting kit accommodates roof thicknesses from 1 to 21 mm.

Check that the 319 mm rotating cover has sufficient clearance from roof racks, solar panels and other accessories.

Follow the installation instructions and use suitable sealing materials. Ribbed or uneven roofs may require an additional roof adapter.

Why Is Additional Floor Ventilation Useful?

Extracted air must be replaced by air entering the vehicle. A suitable floor ventilation grille can provide an additional air inlet and support circulation through the cargo compartment.

Turbo 2 vs Electric Roof Ventilation

The Turbo 2 requires no electrical power, but airflow depends on available wind. An electric 12V or 24V roof ventilator is more suitable when active extraction is required even without wind.

Frequently Asked Questions

Does the Turbo 2 need electricity?

No. It operates using wind and airflow while driving.

Does it work while the vehicle is stationary?

Yes, provided sufficient natural wind is available.

Is the interior grille included?

Yes. The kit includes a closable interior grille and shutter.

What roof opening is required?

A circular opening with a diameter of 128 mm.

Which roof thicknesses are supported?

The standard mounting kit is intended for roofs from 1 to 21 mm thick.

Can the Turbo 2 supply air into the vehicle?

This ventilator is designed for extraction. Separate air inlets can support ventilation.

Order the Turbo 2 Mechanical Roof Ventilator from Vanworx

The Turbo 2 mechanical roof ventilator offers practical wind-driven vehicle air extraction without an electrical connection.

Choose black or white and order from Vanworx. Contact us for advice about installation, roof clearance or suitable ventilation accessories.
