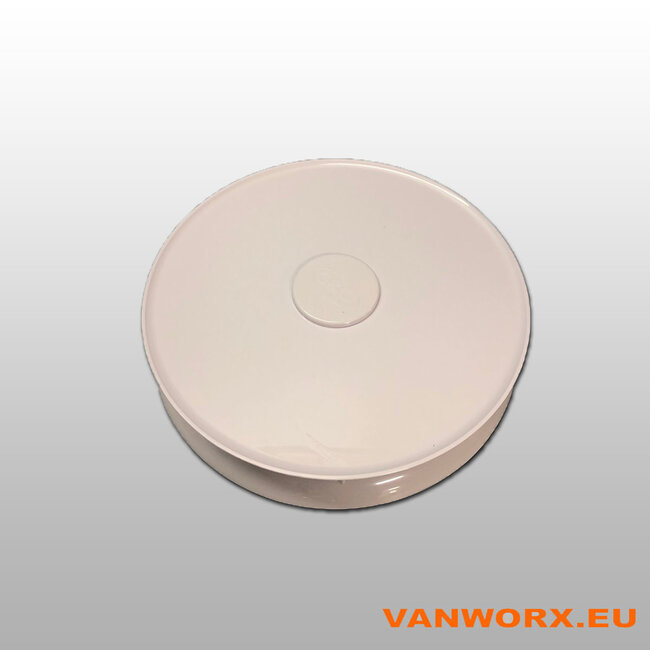

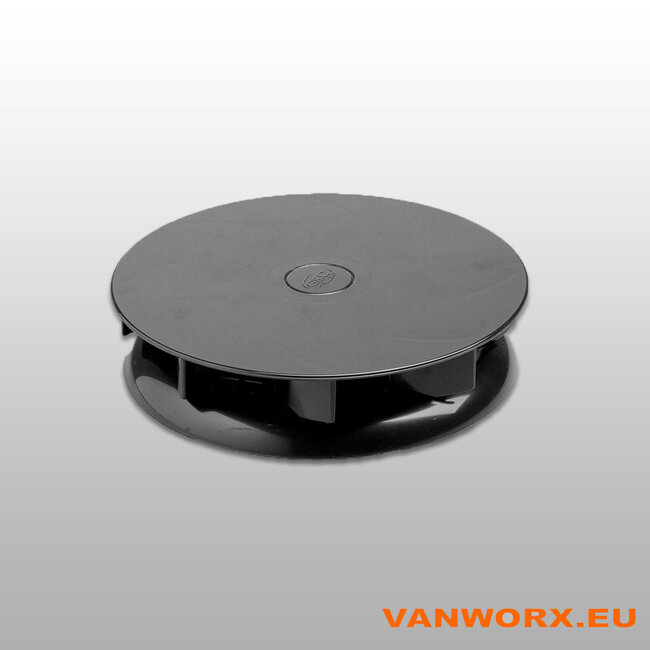

Turbo 3 – compact wind-powered roof ventilator
Fresh air in your commercial van without using electricity. The G&C Turbo 3 is a compact mechanical roof ventilator that uses airflow generated by wind and vehicle movement to extract stale air. Ideal for commercial vans, service vehicles, campervans, enclosed trailers and animal transport vehicles.
With its low-profile height of just 59.5 mm and a required roof opening of only Ø 80 mm, the Turbo 3 is particularly suitable for compact vehicle installations. This ventilator operates without an electric motor, wiring or a connection to the vehicle battery.
Vanworx installation advantage: this Turbo 3 comes with a Vanworx roof marking tool as standard. It helps you accurately mark the required roof opening before installation.
Key benefits of the Turbo 3
- No electricity required: the rotor is driven by vehicle movement or sufficient outside wind.
- Compact design: extends only 59.5 mm above the vehicle roof.
- Small roof opening: requires a cut-out of just Ø 80 mm.
- Wind-powered extraction: helps remove warm, humid and stale air.
- Closable interior valve: allows the ventilation opening to be closed from inside the vehicle.
- Includes Vanworx marking tool: helps accurately mark the roof opening.
- Durable construction: manufactured from ABS plastic with two ball bearings.
- Versatile applications: suitable for commercial vans, campervans, service vehicles and trailers.

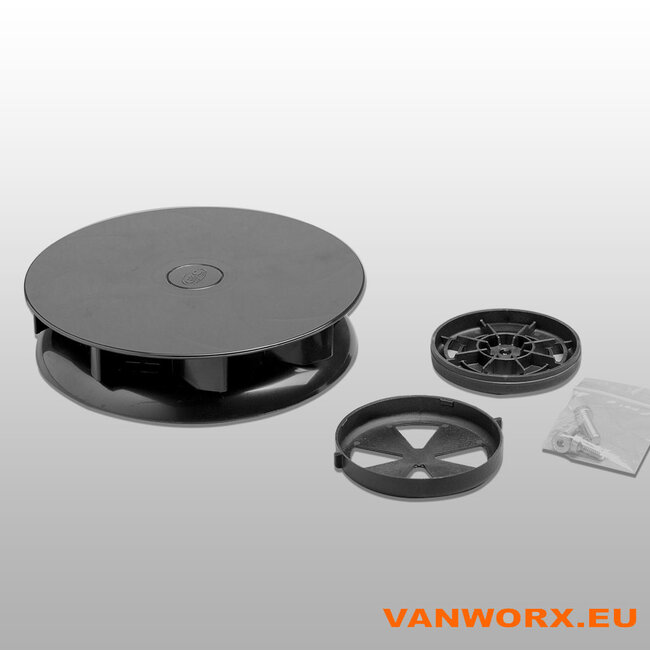

What's included?
- 1× Turbo 3 mechanical roof ventilator with wind-driven rotor and exterior housing
- 1× closable interior ventilation valve with interior fitting
- Fixing components for standard installation
- 1× Vanworx marking tool for marking the roof opening
Not included: installation and sealing adhesive or an additional floor ventilation grille. These accessories are available separately.

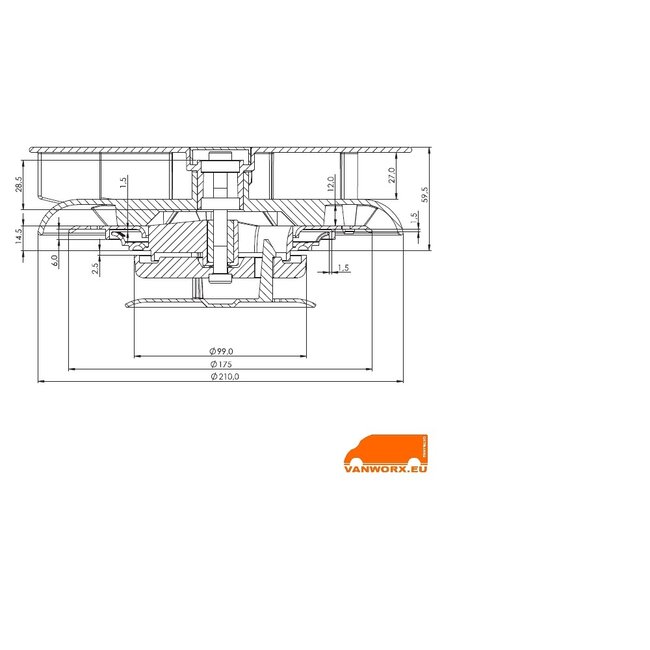

Technical specifications
- Type: mechanical wind-powered roof ventilator
- Function: air extraction
- Electrical connection: not required
- External diameter: 210 mm
- Height above roof: 59.5 mm
- Required roof opening: Ø 80 mm
- Installation depth: approximately 14.5 mm
- Suitable roof thickness: 1–17 mm with standard fixing
- Material: ABS plastic
- Bearings: 2 ball bearings
- Weight: approximately 0.55 kg
- Colours: black or white
- White part number: 02-6000
- Black part number: 02-6100
Easy installation with the Vanworx marking tool
The Turbo 3 is installed through an Ø 80 mm opening in the vehicle roof. The supplied Vanworx marking tool helps you mark the correct position and required opening before cutting.
- Select a suitable installation position on the vehicle roof.
- Check the roof structure, existing wiring and reinforcements.
- Use the Vanworx marking tool to mark the roof opening.
- Make the opening according to the installation instructions.
- Protect exposed metal edges against corrosion and ensure proper sealing.
- Install the ventilator and closable interior valve according to the instructions.
Installation tip: ensure an adequate supply of fresh air. An additional floor ventilation grille can help improve airflow through the vehicle's load compartment. Ribbed roofs may require additional packing or sealing.
Frequently asked questions
Does the Turbo 3 work without electricity?
Yes. Its rotor is wind-powered and requires no electrical connection.
Does it ventilate when the vehicle is parked?
Sufficient outside wind may drive the rotor while the vehicle is stationary. Active extraction is not guaranteed without adequate wind.
Is the Vanworx marking tool included?
Yes. Every Turbo 3 supplied by Vanworx includes a practical tool for marking the roof opening.
Can the ventilation opening be closed?
Yes. The Turbo 3 includes a closable interior ventilation valve.
Is installation sealant included?
No. Suitable installation and sealing adhesive is available separately.
Order the Turbo 3 roof ventilator from Vanworx
Choose black or white and improve natural air extraction in your commercial vehicle. Includes a closable interior valve and practical Vanworx roof marking tool.
