LeMans 12V PLUS Roof Ventilation Kit – Electric Roof Vent with Installation Materials

Looking for a powerful electric roof ventilator for your commercial van, service vehicle, delivery van or campervan? The LeMans 12V PLUS Roof Ventilation Kit from Vanworx combines active vehicle ventilation with a comprehensive selection of installation and interior finishing components.

The electrically powered LeMans roof ventilator helps extract warm, humid and stale air. Thanks to its 12V operation, it can also run while the vehicle is stationary, provided a suitable power supply is available.

The PLUS version includes MS polymer sealant, mounting hardware, a grey interior grille, insect/snow filter and sealing ring as standard. This provides essential components for a professional installation.

Benefits of the LeMans 12V PLUS

• Powerful 12V roof ventilator: Designed for vehicles with a 12V DC electrical system.
• High airflow: Up to 850 m³/h according to technical product specifications.
• Electric ventilation: Operates independently of driving wind and can run when stationary.
• Air intake and extraction: Reversible airflow with suitable electrical wiring and controls.
• MS polymer sealant included: For reliable sealing when correctly installed.
• Mounting hardware included: Suitable for roof thicknesses of 1 to 3 mm according to the kit specifications.
• Neat interior finish: With a grey PVC interior grille and insect/snow filter.
• Two colours: Available in black and white.

What Is Included in the Complete LeMans 12V PLUS Kit?

The PLUS version is designed to make roof ventilator installation easier. The following components are included:

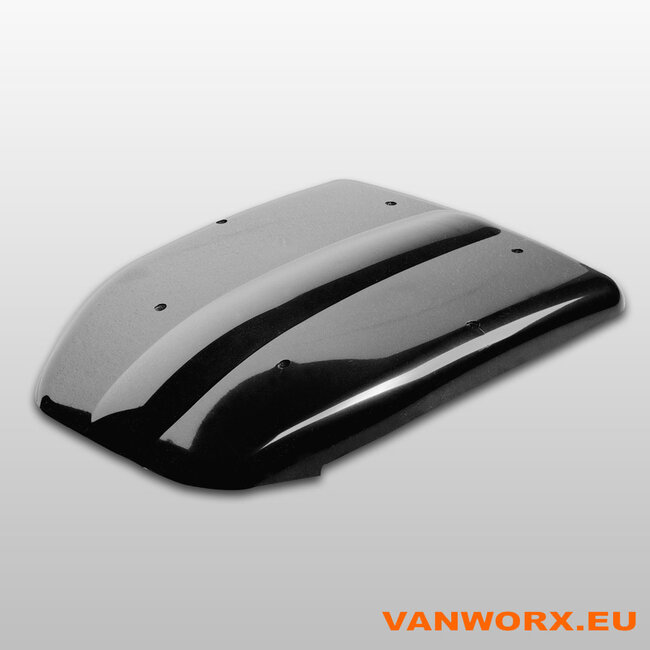

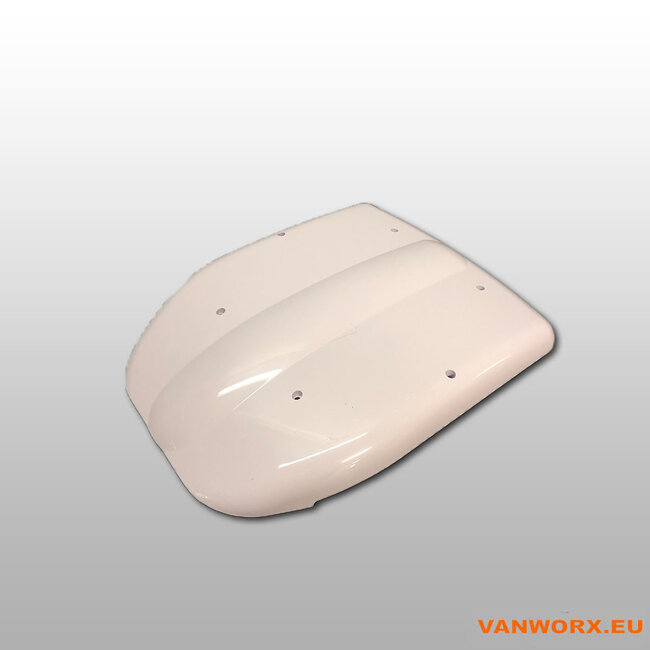

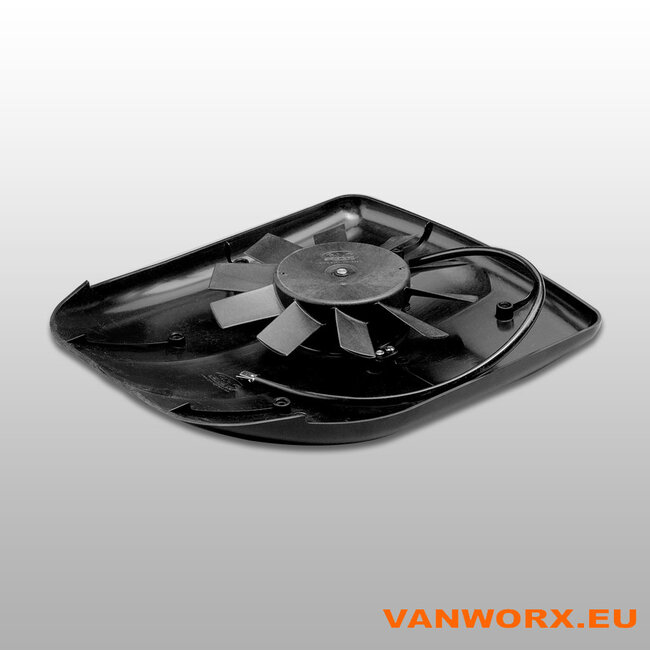

• 1 x LeMans 12V electric roof ventilator – in the selected colour, black or white

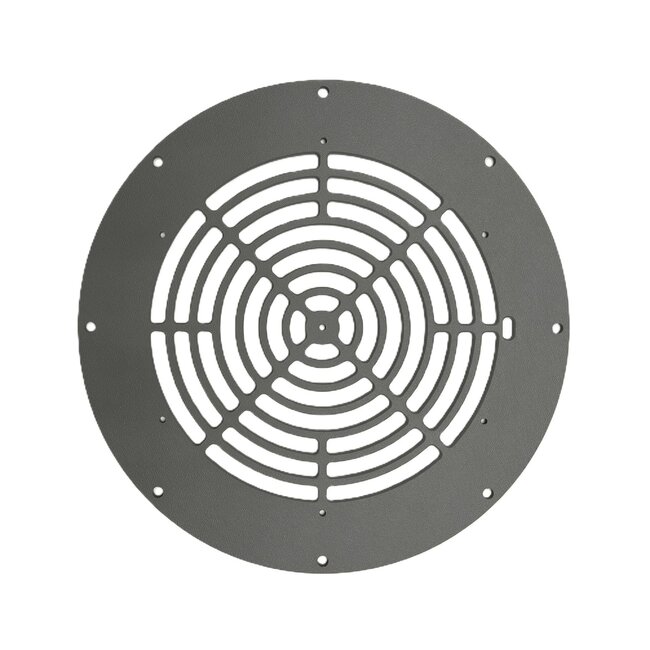

• 1 x grey PVC interior ventilation grille – for a neat interior finish
• 1 x insect and snow filter – helps reduce the entry of insects and snow

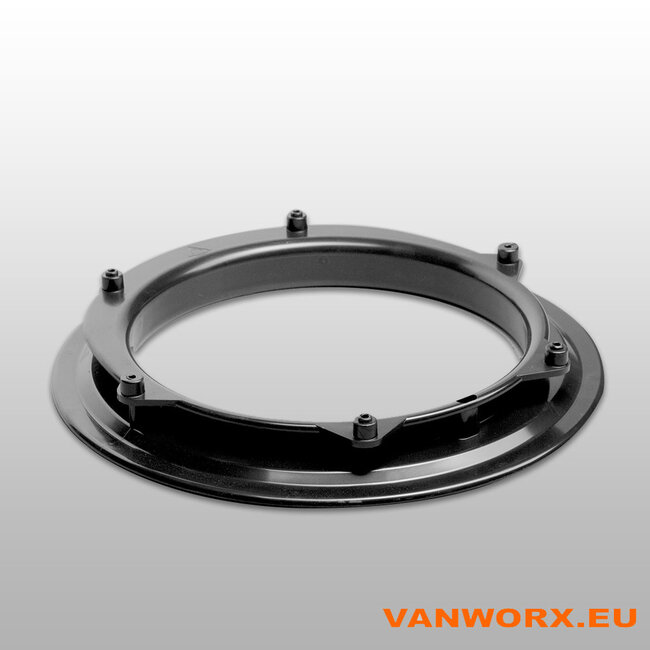

• 1 x sealing ring – for installation on a suitable roof structure

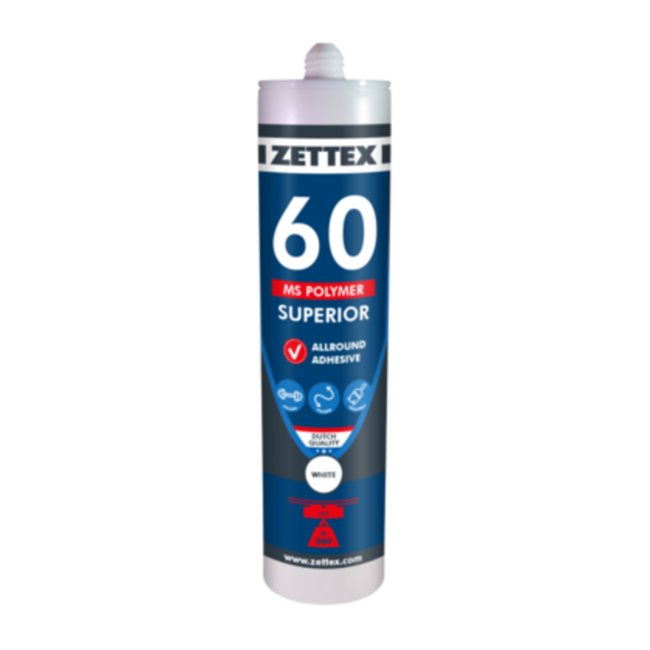

• 1 x tube of MS polymer sealant – for sealing the roof opening
• 1 x set of mounting hardware – suitable for roof thicknesses of 1 to 3 mm
• 1 x installation manual – with fitting information
• 1 x drilling and cutting template – for accurately marking the roof opening

PLUS advantage: MS polymer sealant and mounting hardware are already included. There is no need to purchase these components separately.

LeMans 12V PLUS Technical Specifications

• Type: LeMans PLUS electric roof ventilator
• Operating voltage: 12 V DC
• Power: 80 W
• Airflow: 850 m³/h according to technical product specifications
• Nominal speed: 2600 RPM
• Noise level: 52 dB(A) according to technical product specifications
• Airflow direction: Intake and extraction with suitable controls

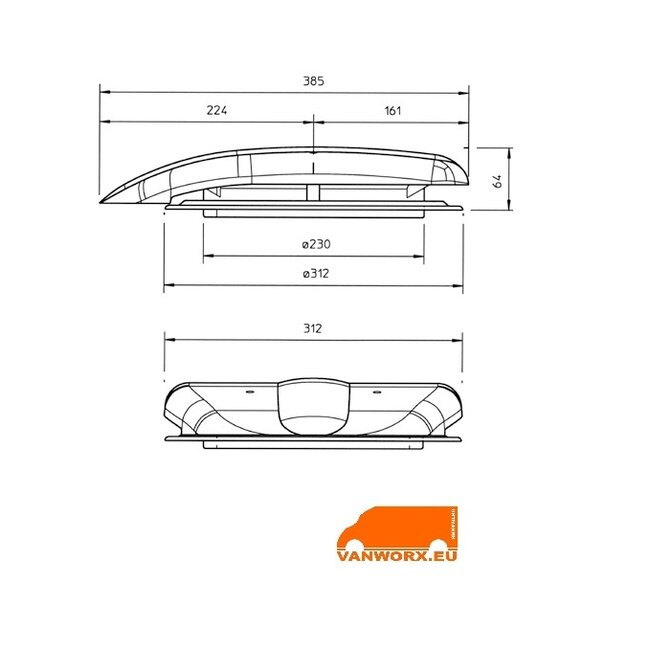

• Roof opening / cut-out size: 230 / 245 mm, depending on the mounting configuration
• External mounting height: Approximately 64 mm
• Material: ABS roof ring and plastic ventilator cover
• Colours: Black and white
• Vanworx kit part number, black: 02-2200-ZW-PLUS
• Vanworx kit part number, white: 02-2200-PLUS

Important: Always check the exact roof opening against the supplied installation manual and drilling/cutting template before cutting the vehicle roof.

Installing the LeMans 12V PLUS

Before installation, check the roof structure, thickness and available mounting space. The LeMans 12V PLUS comes with a sealing ring, MS polymer sealant and mounting hardware.

When correctly applied and installed on a suitable roof structure, these components help create a watertight seal.

Suitable for Different Vehicle Types

The LeMans 12V PLUS can be used on various commercial vans, delivery vehicles, service vans and campervans equipped with a suitable 12V electrical system.

Vehicles with heavily ribbed or curved roofs may require an additional vehicle-specific roof adapter.

Electrical Connection

The roof ventilator operates on 12V DC. A suitable and correctly fused electrical connection is required for safe operation.

With a suitable 3-position switch and appropriate wiring, the ventilator can be controlled for air intake, off and air extraction.

Which Accessories Can Be Ordered Separately?

• Connection kit with 3-position switch: For suitable electrical connection and control of the airflow direction.
• Speed controller: To adjust fan speed and reduce operating noise at lower speeds.
• Stainless steel floor ventilation grille: For additional fresh air intake and improved air circulation.
• Vehicle-specific roof adapter: For certain ribbed or curved vehicle roofs.

These accessories are optional and are not included in the standard PLUS kit. MS polymer sealant and mounting hardware are included.

Applications for the LeMans 12V PLUS

• Commercial vans: Supports active ventilation of cargo and work areas.
• Service vehicles and mobile workshops: Helps extract warm and humid air.
• Campervans and converted vans: For additional electric roof ventilation.
• Goods and tool transport: Helps reduce moisture build-up and unwanted odours.

Important: Hazardous fumes, toxic substances or explosive atmospheres require purpose-designed and approved extraction equipment. This roof ventilator is not a substitute for a specialised safety ventilation system.

Frequently Asked Questions About the LeMans 12V PLUS

Are sealant and mounting hardware included?

Yes. The PLUS kit includes MS polymer sealant, a sealing ring and mounting hardware as standard.

What roof opening is required?

The technical product specifications state 230 / 245 mm, depending on the mounting configuration. Always use the supplied installation manual and drilling/cutting template to determine the correct opening.

Can the ventilator operate while the vehicle is stationary?

Yes. The LeMans can operate while stationary, provided a suitable 12V power supply is available.

Can the LeMans supply and extract air?

Yes. The airflow direction can be reversed with appropriate electrical wiring and controls.

Is a speed controller included?

No. A speed controller is optional and can be ordered separately. It is included in the more comprehensive LeMans Premium kit.

Is this roof ventilator suitable for a 24V system?

No. This is the 12V version. A separate LeMans 24V model is available for vehicles with a 24V electrical system.

Order the LeMans 12V PLUS Roof Ventilation Kit from Vanworx

The LeMans 12V PLUS combines powerful electric roof ventilation with essential installation and interior finishing components in one convenient kit.

Select your preferred colour and order easily from Vanworx.

Questions about installation, electrical connections or the correct roof adapter? Contact Vanworx for personal advice.
