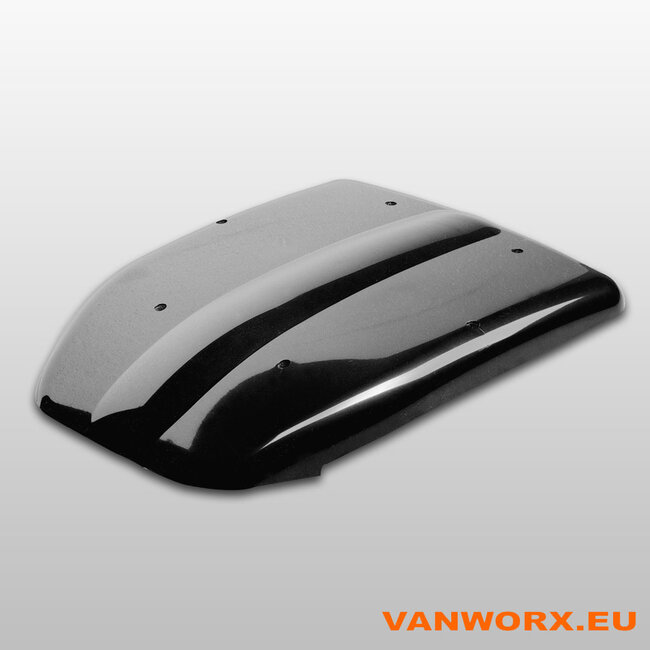

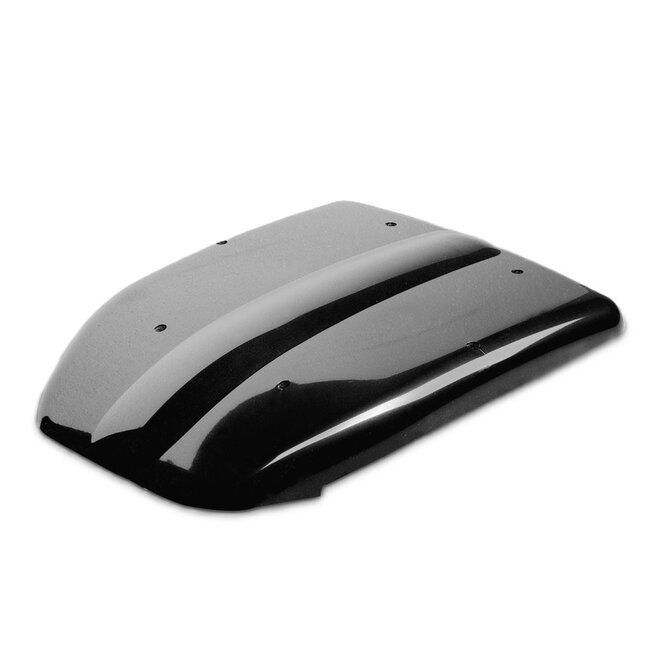

The G&C LeMans 24V PLUS is a powerful electric roof ventilation set for trucks, commercial vans, service vehicles and other vehicles with a suitable 24V electrical system. With a maximum airflow of 850 m³/h, it helps extract warm, humid and stale air from the vehicle.

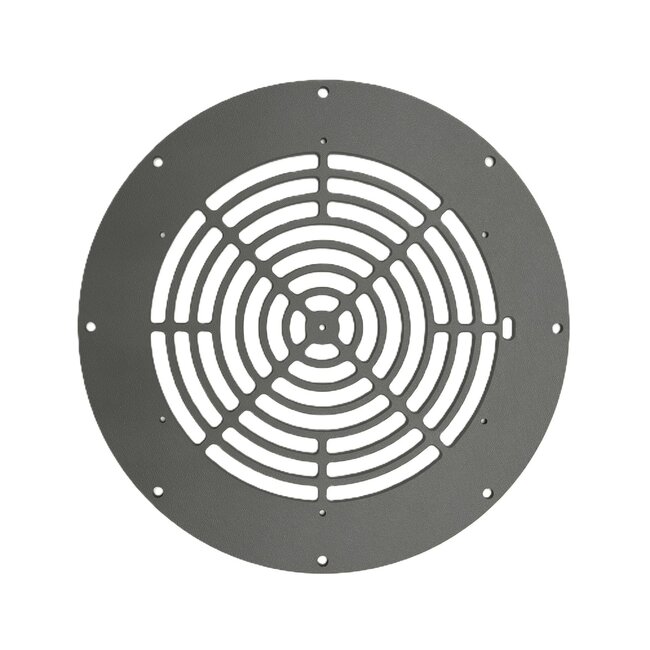

The PLUS package includes the roof ventilator together with a mounting ring, rubber seal, grey interior grille, insect/snow filter, adhesive sealant and mounting hardware. This provides key components for roof installation and interior finishing.

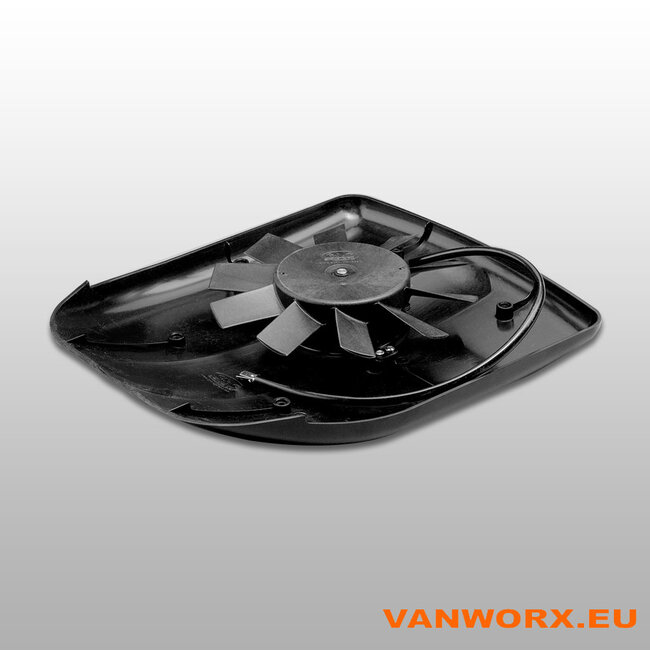

The LeMans 24V uses an 80 W electric motor. With a compatible electrical connection, the direction of rotation can be reversed, allowing the ventilator to draw in outside air or extract air from the vehicle.
A suitable three-position reversing switch is required to select intake, off or extraction. This switch is not included in the PLUS package and can be purchased separately, either individually or as part of a connection kit.
Not included: electrical connection kit, three-position switch, speed controller and floor ventilation.

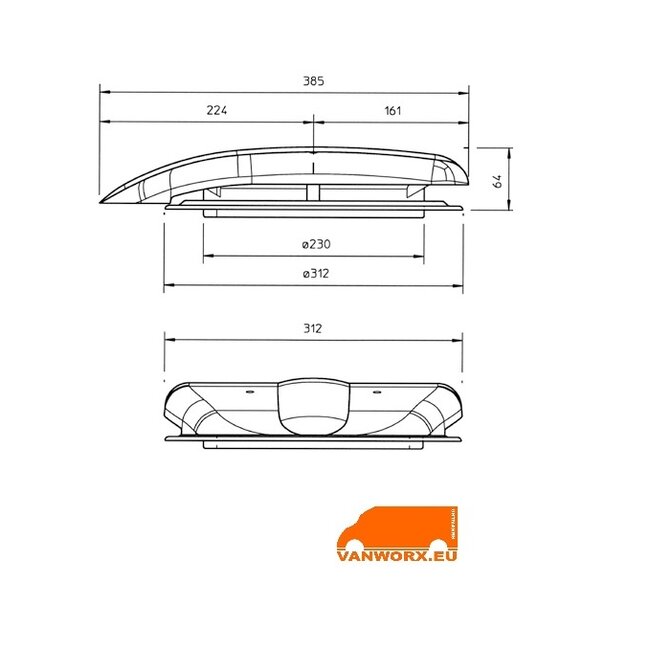

Before installation, inspect the roof profile, structure and available mounting space. Use the supplied drilling and cutting template to determine the correct roof opening.

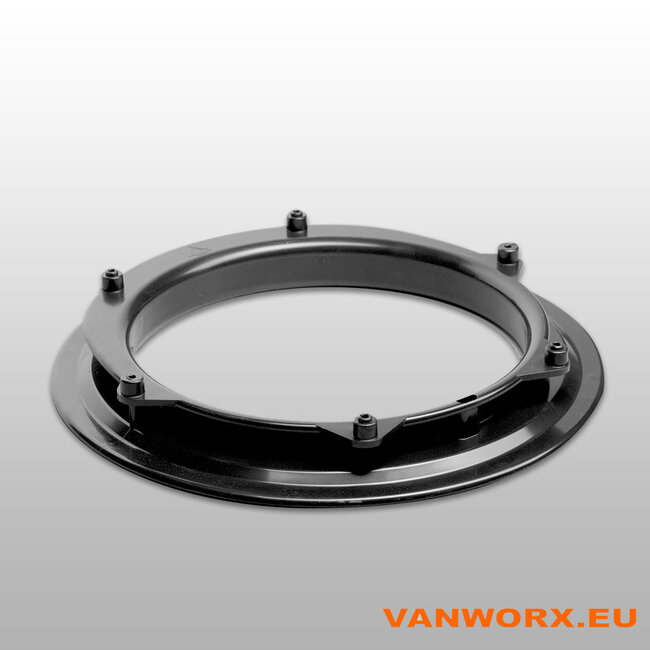

The mounting ring and rubber seal help provide the correct mechanical connection and sealing arrangement. Profiled or curved vehicle roofs may require an additional compatible roof adapter.
The updated package specifies 3M 540 Polyurethane Adhesive Sealant. Before application, verify compatibility with the substrates, required surface preparation and the latest 3M application instructions. Correct sealing depends on the roof structure and installation method.
Connect the ventilator to a suitable 24V supply using the correct cable size, fuse protection and controls. A compatible three-position reversing switch can be used to select air intake, off and extraction.
A suitable 24V PWM speed controller can be added separately to adjust fan speed. Only use a controller designed for this conventional LeMans motor.

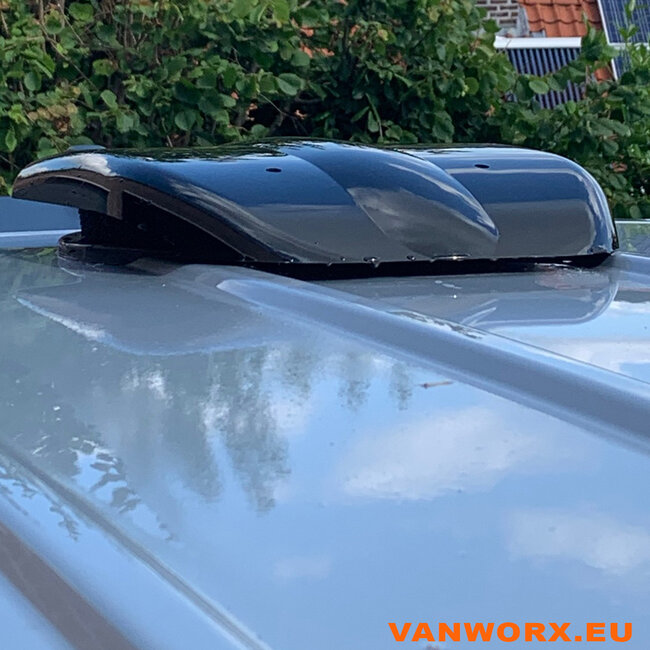

The LeMans 24V PLUS is suitable for trucks, heavy commercial vans, service vehicles, trailers and other vehicles with a compatible 24V electrical system. It helps remove heat, humidity and stale air.
Effective air exchange requires sufficient replacement air, for example through a suitable floor or side vent.
Is this the 24V model?
Yes. This LeMans PLUS is designed for 24V DC, not direct connection to 12V.
What is the maximum airflow?
850 m³/h according to the manufacturer's specification.
Can the ventilator provide intake and extraction?
Yes, with a suitable reversing electrical connection.
Are sealant and mounting hardware included?
Yes. The updated PLUS package contains 3M 540 Polyurethane Adhesive Sealant and mounting hardware.
Are the mounting ring and rubber seal included?
Yes, both are part of the PLUS package.
Is a speed controller included?
No, it is available separately.
Is a three-position switch included?
No, a suitable switch or connection kit must be ordered separately.
Is a floor vent included?
No, floor ventilation is an optional accessory.

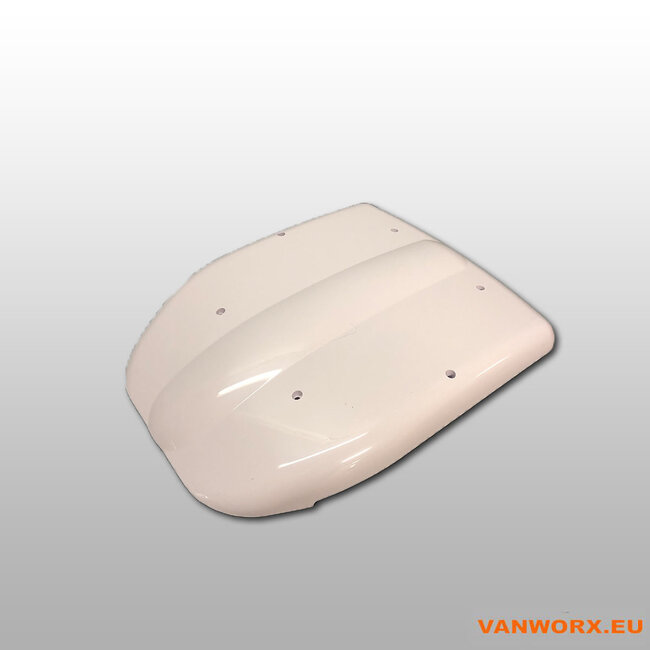

Choose powerful electric vehicle ventilation with 850 m³/h airflow and an extensive PLUS installation package. Select the white or black version and add a suitable 24V connection kit, speed controller or floor vent if needed.
